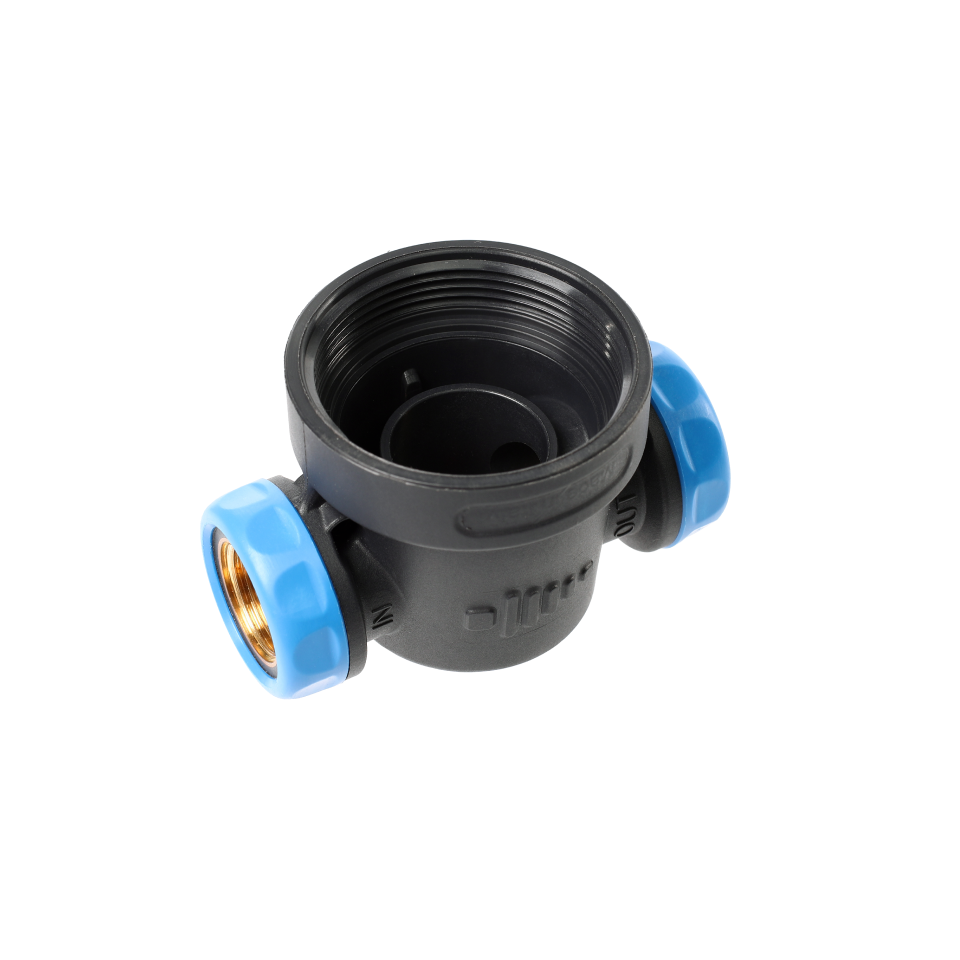

The self-cleaning filter is designed for high-level cold-water filtration in both industrial and household applications, protecting boilers, washing machines, dishwashers, and more. It is also suitable for drinking water treatment. The filter head, made of reinforced material, ensures high resistance to burst and fatigue.
Technical specifications
- Head: Reinforced PA* 66
- Clamping: Threaded
- Bowl: SAN**
- O-ring: NBR 70
- Max. working pressure: 8 bar
- Working temperature: from 5°C (41°F) to 45°C (113°F)
- Filtration: Sediments
- Cartridge: SS** AISI 304
- Cartridge type: Washable
- Maintenance: Quarterly

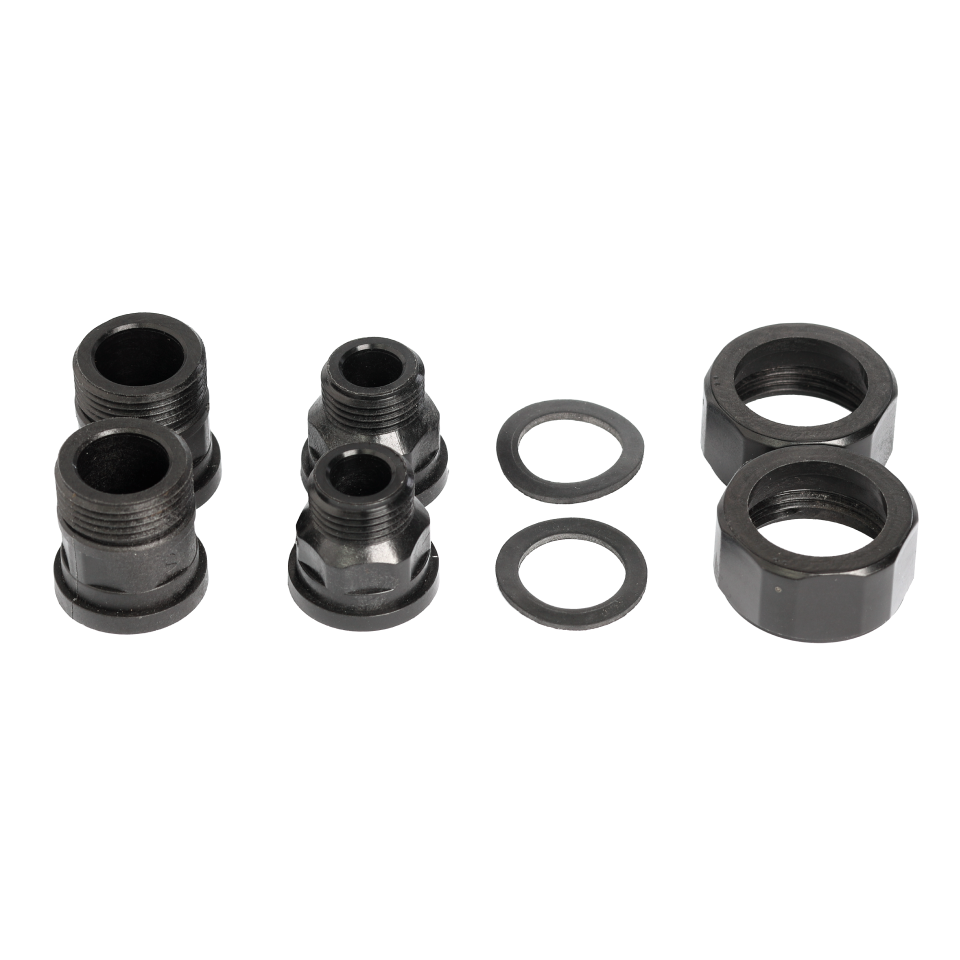

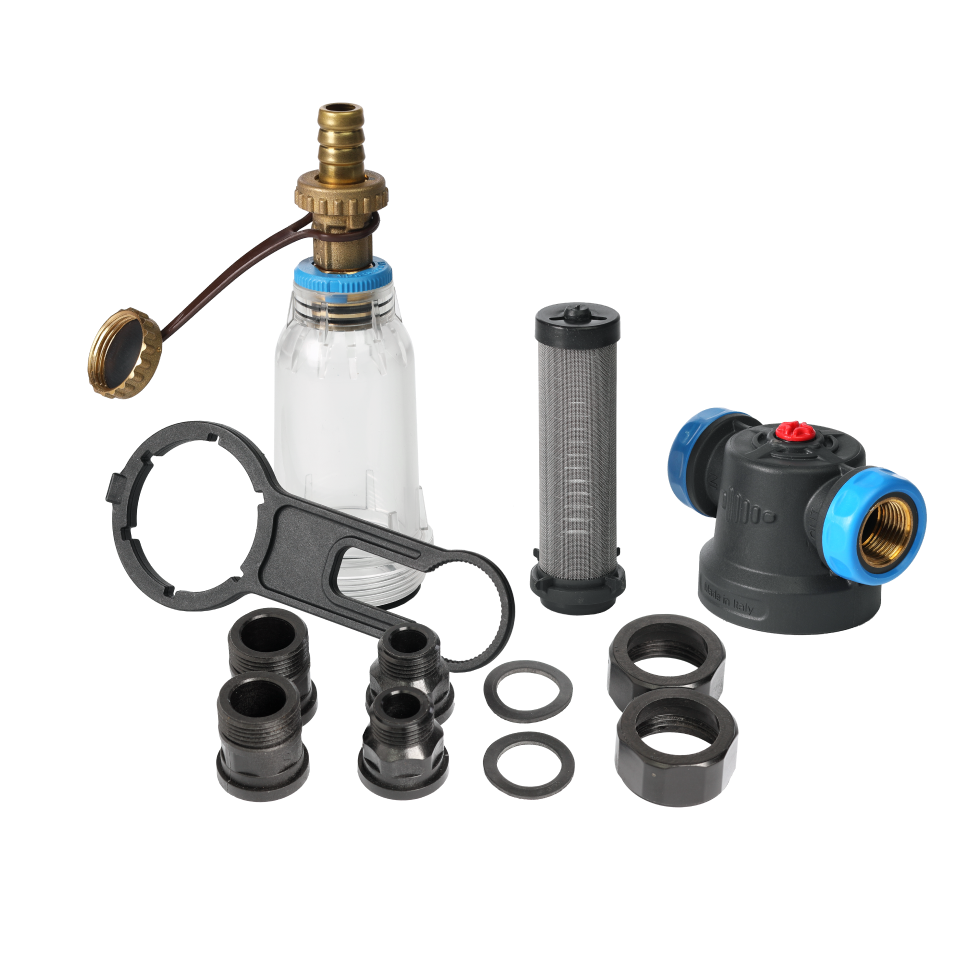

- Package: Filter, cartridge, pressure gauge, service wrench, ball valve, ½” M and ¾” M connection units
IN/OUT Threads
- ½” Connection:
- Filtration rating: 250 µm
- Flow rate: 1 900 l/h
- ¾” Connection:
- Filtration rating: 250 µm
- Flow rate: 2 200 l/h
*Nylon
** Styrene acrylonitrile
Product
Image Size
DIMENSIONS, H×W×D:
205 x 49 x 84
mm
Filter weight
0
kg
FFNS2P1522
Self-Cleaning SAN Filter with 304 Stainless Steel Mesh Cartridges and ½” FM and ¾” M Connections
TDS Self-Cleaning SAN filter with ½” FM and ¾” M connection
