FCSTPD0015

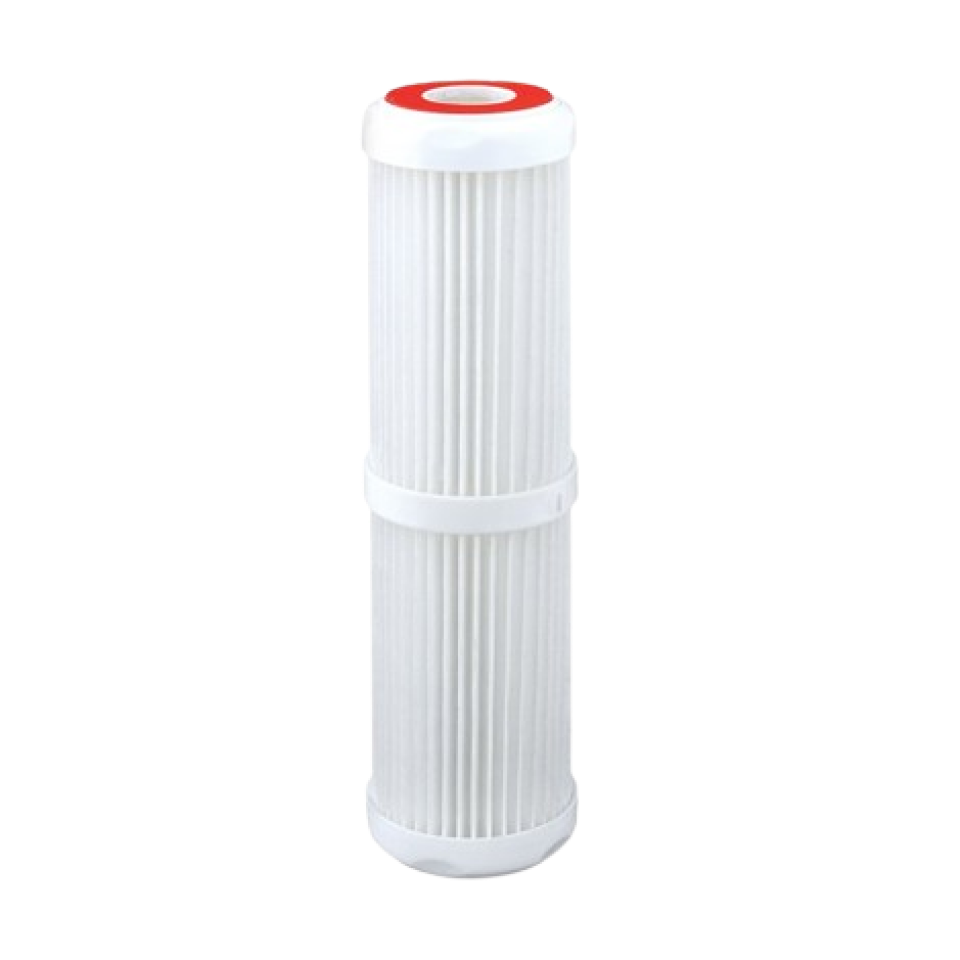

Pleated polyester cartridge

The CTS pleated polyester washable cartridge is designed to protect boilers, dishwashers and washing machines by filtering sand, scale, rust.
Versatile industrial use includes varnish and coating filtration, industrial applications, chemical, petrochemical, food and drinks, pharmaceutical, cosmetics, electronics, biotech, nuclear.

‍

‍

Send request

  • 3 times higher filtering area in comparison to standard cartridges
  • Easy to wash under running water
  • High pressure resistance thanks to the filter structure
  • Suitable for drinking water treatment
  • Complies with DM25 standards (ITALY)

  • Delivery to Nothern Ireland £60.00

    (Within three days)

  • Standart delivery (exсept for Northern Ireland) £5.00

    (Within three days)

  • Express delivery (exсept for Northern Ireland) £8.50

    (Next day)

Size
2.5" × 10"
Recommended flow rate
8
L/min
Maximum working temperature
4 - 45
°C
Filtration rating
50
micron

Technical specifications

  • Model - CTS
  • Filtration - Polyester
  • Filtering medium - Polypropylene
  • Inter core - Polypropylene
  • Valves - Polypropylene
  • Gasket - Elastomer
  • Connection - DOE
  • Working temperature - From 4°C (39°F) to 45°C (113°F)
  • Cartridge type - Washable
  • Maintenance - Quarterly
  • Duration - 24 months
  • Size - 9 ¾"
  • Flow rate, l/h - 2 200
  • Filtration rating, µ - 50

Product
Image Size

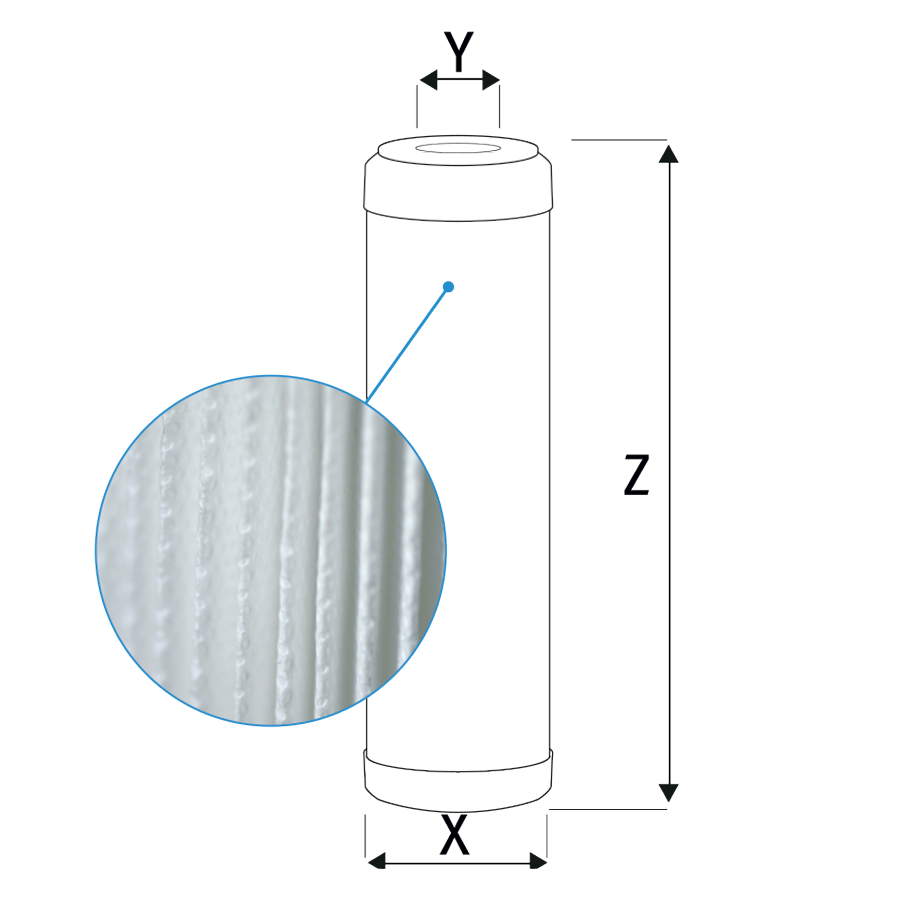

DIMENSIONS, H×W×D:
248 x 70 x 28
mm
Filter weight
kg
