OASIS-C300

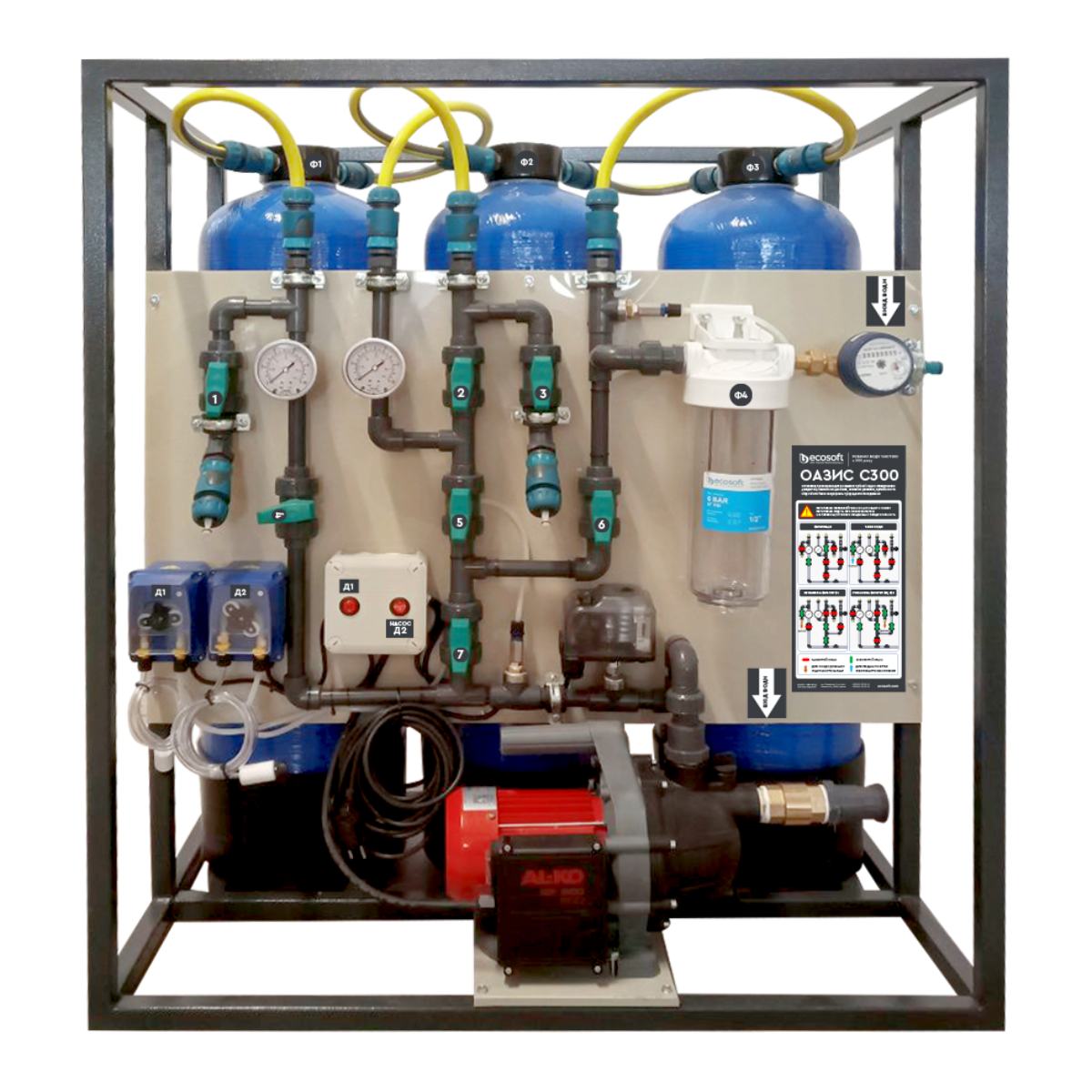

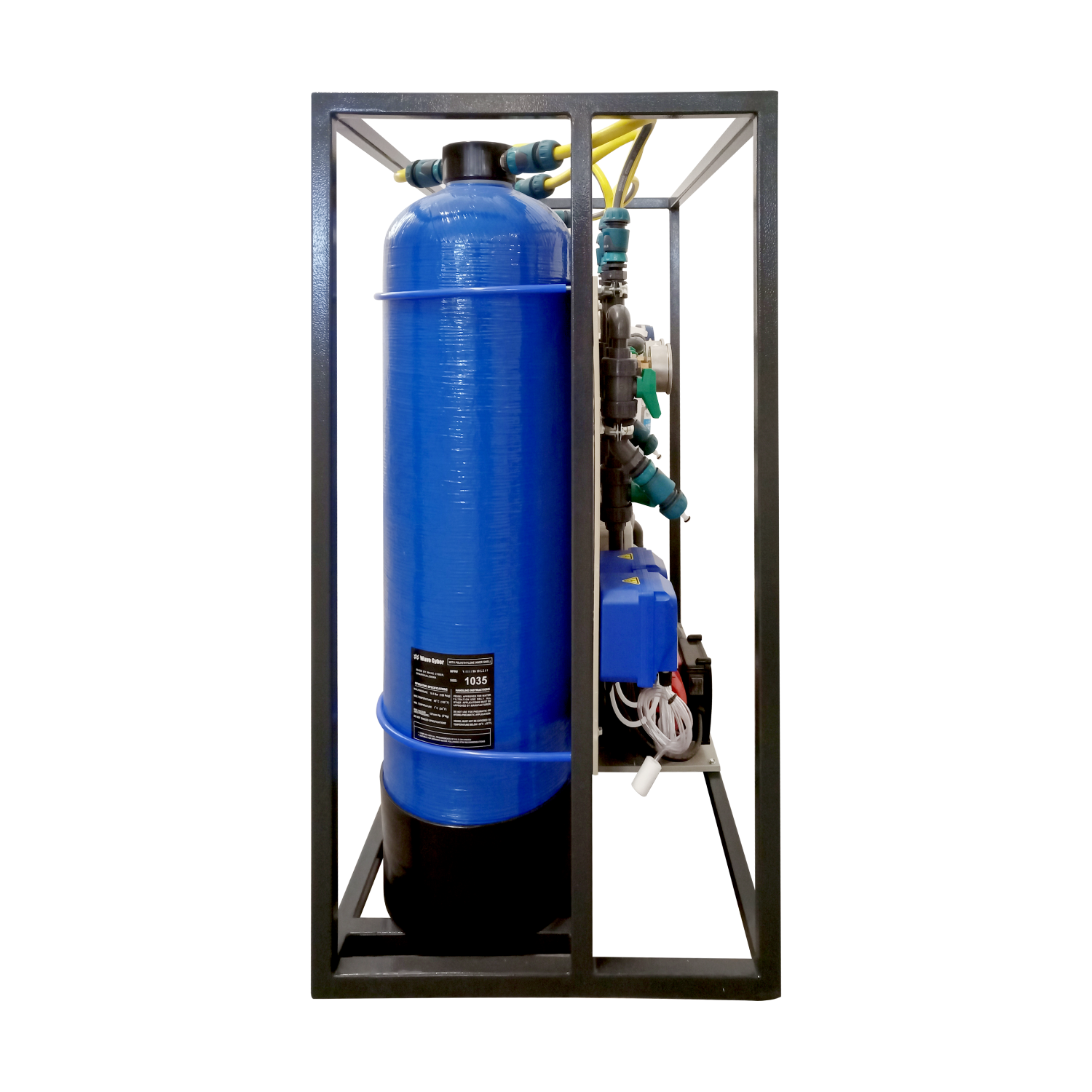

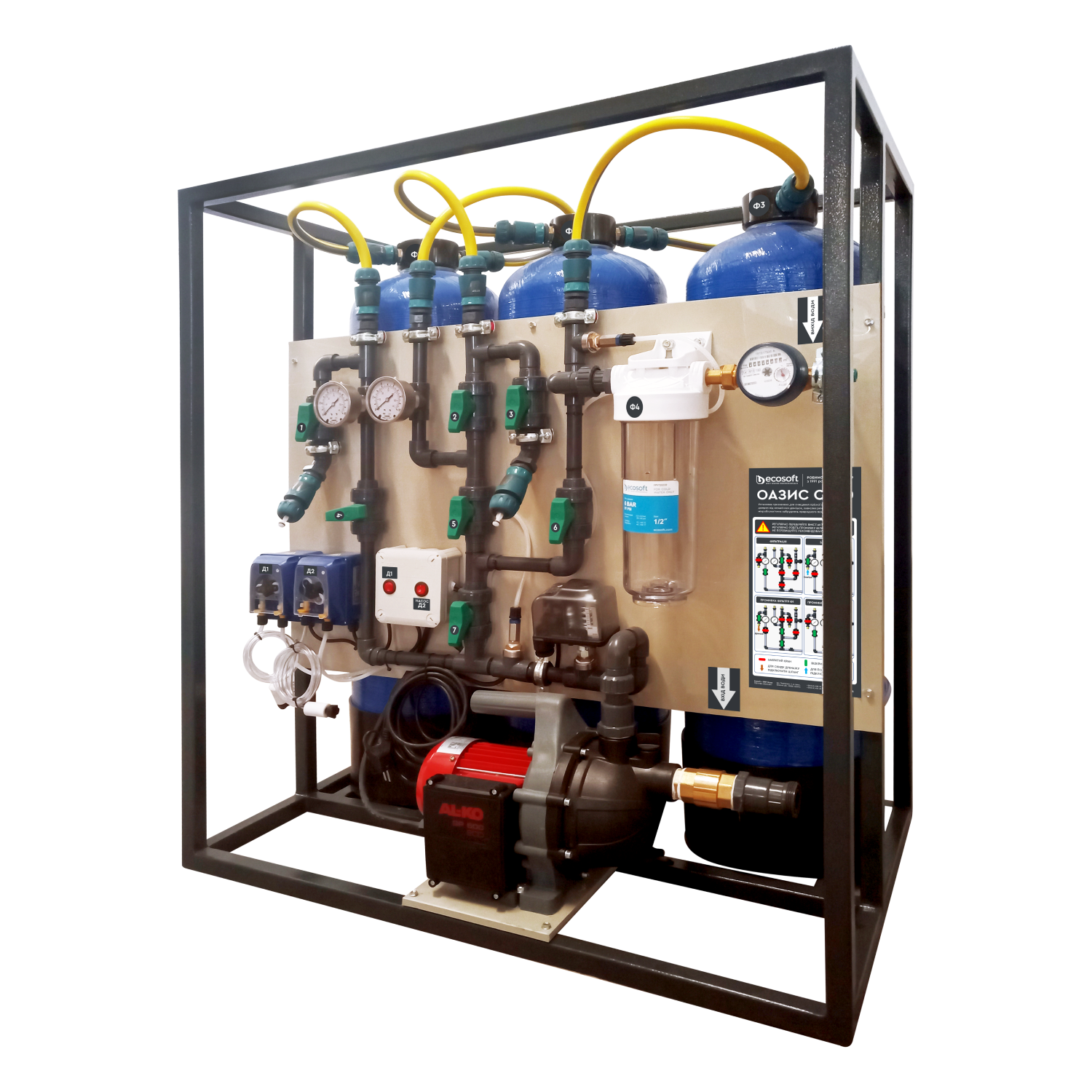

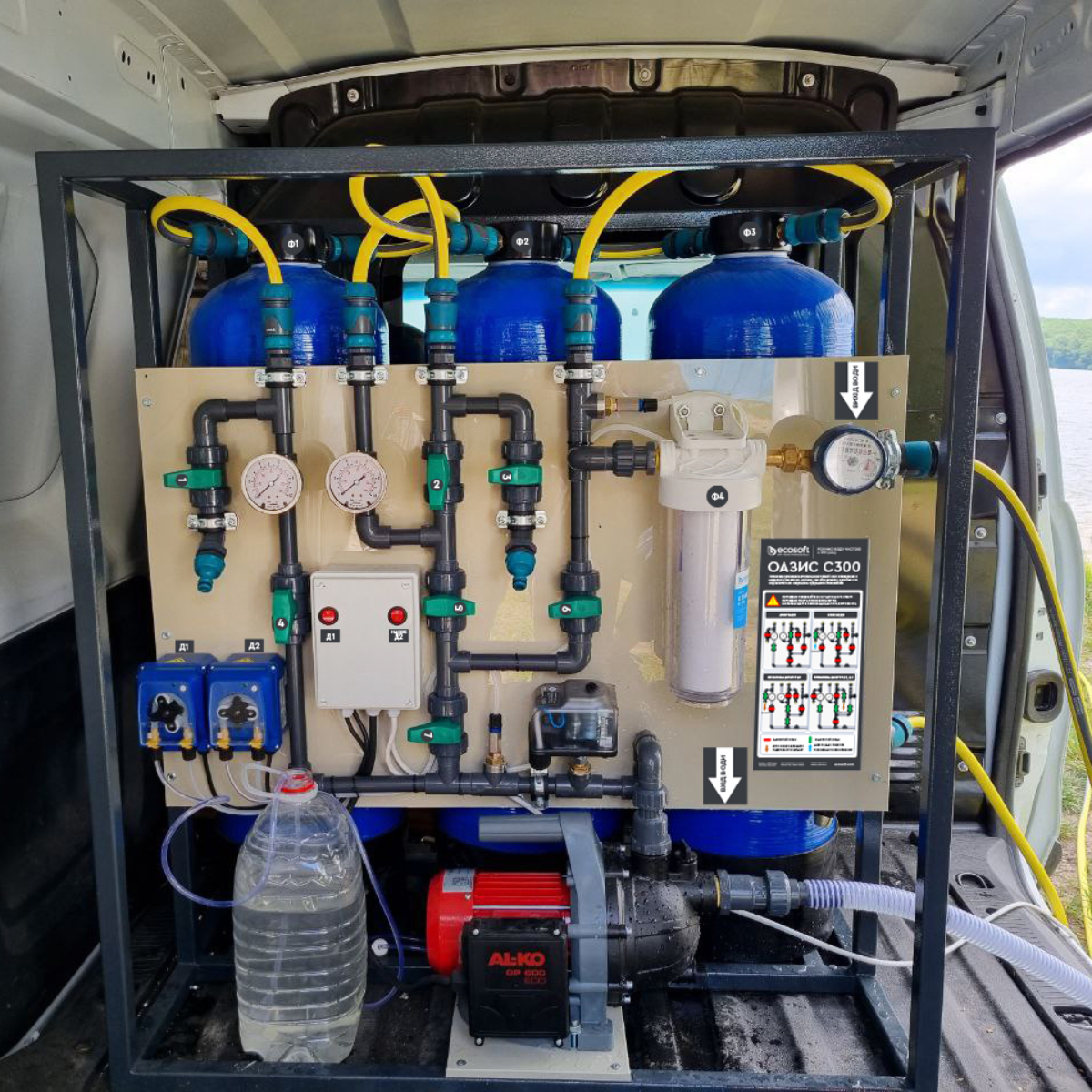

OASIS-C300 Compact mobile water purification system

The plant’s capacity is 250–300 l/h (up to 5,000 l/day) that allows to provide the daily drinking water needs of up to 1,000 people.

The OASIS-C300 system is designed to purify water from surface sources and wells with low mineralization from microbiological, mechanical and organic contamination. The system is used to provide drinking water to campsites, houses or ranches etc.

OASIS can be used in emergency situations for water treatment at critical infrastructure facilities or modular camps.

‍

Send request

  • 5 stage of water purification technology:1 stage — Water chlorination — oxidation of impurities and disinfection of water. The dose of chlorine is adjusted to the feed water quality and is controlled by the test system included in the supply kit.
  • 2 stage — Sediment filter — filters particles, sand or other mechanical impurities. The filter uses highly effective Filter AG (USA) filter material.

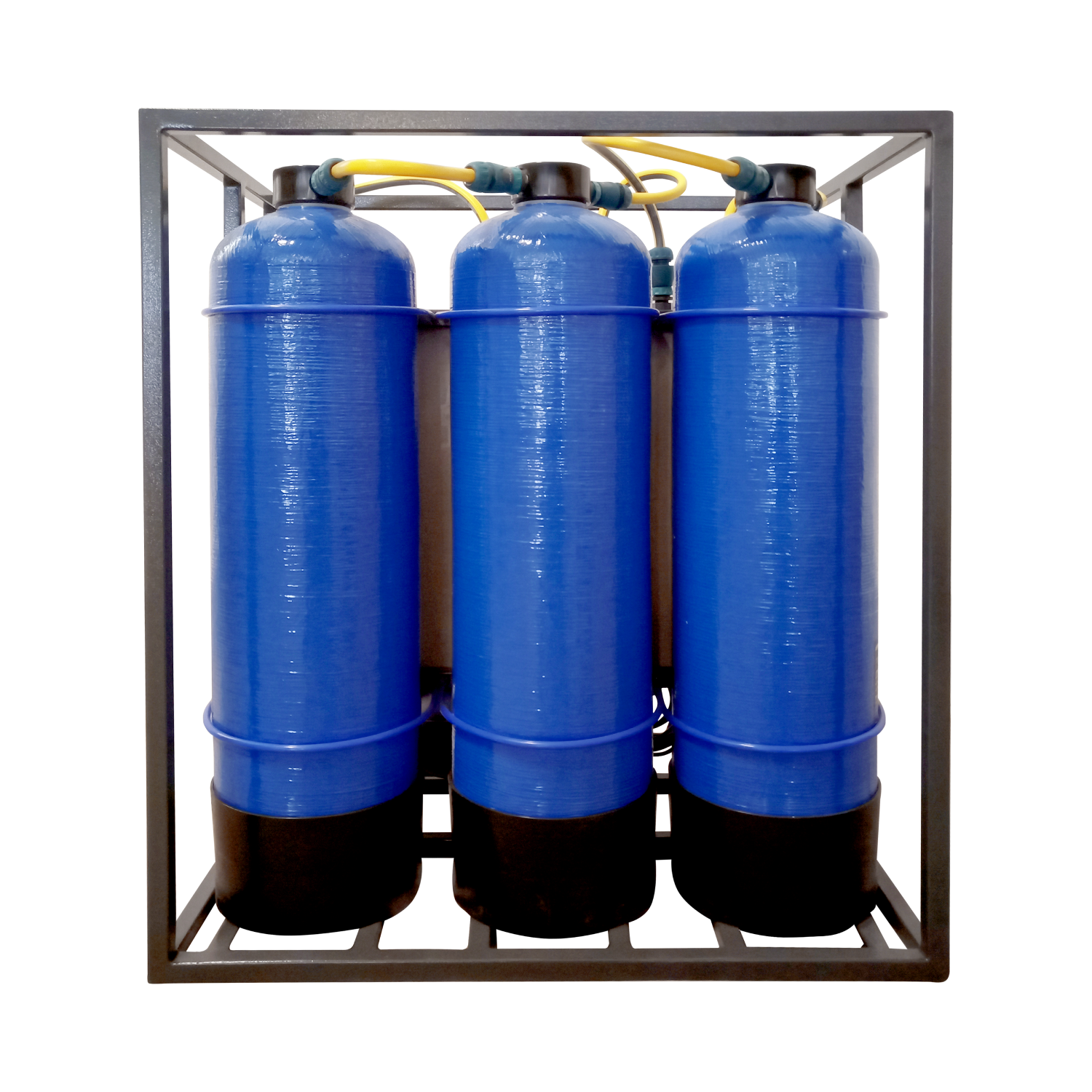

  • 3 stage — Two-stage filtration on carbon filters — removal of organic compounds, dechlorination during hyperchlorination and other toxic substances.
  • 4 stage — Secondary chlorination — if long-term disinfection of purified water is necessary.
  • 5 stage — Final filtration on a fine filter cartridge (5μm).

  • Delivery to Nothern Ireland £60.00

    (Within three days)

  • Standart delivery (exсept for Northern Ireland) £5.00

    (Within three days)

  • Express delivery (exсept for Northern Ireland) £8.50

    (Next day)

Flow capacity
250-300
L/h
Inlet water pressure
900 х 550 х 1000
mm
Approx. weigt (crate), without water
100
kg
Electrical power
650
Energy consumption
Outlet chlorine concentration
0.3-0.5
mg/L
Maximum pressure drop at F1
0.5-0.6
bar

Equipment

  • Centrifugal pump
  • Sediment filter with manual flush and drainage and distribution devices
  • Charcoal filter with manual flush and drainage and distribution devices - 2 pcs
  • Sediment filter with polypropylene replacement cartridge
  • Dosing pump with capacity adjusting and connection kit
  • Compressor
  • Monitoring and control devices
  • Pressure switch
  • Flow meter
  • Pressure gauge
  • Electrical cabinet with control buttons
  • Frame for installation of equipment with panel
  • Set of pipe banding

Technical data

  • Capacity — 250-300 l/h ~5000 m³/day
  • Dimensions (WxDxH) — 1000x700x1700 mm
  • Weight (max):

— empty - 100 kg

— operating - 150 kg

  • Power supply* — 230 V, 50 Hz

*an inverter for connecting to a 12V car is included

  • Power consumption:

— average - 220 W

— max - 650 W

Feed water requirements

*The rest of the parameters must comply with local drinking water regulations
