FCHRXD0025

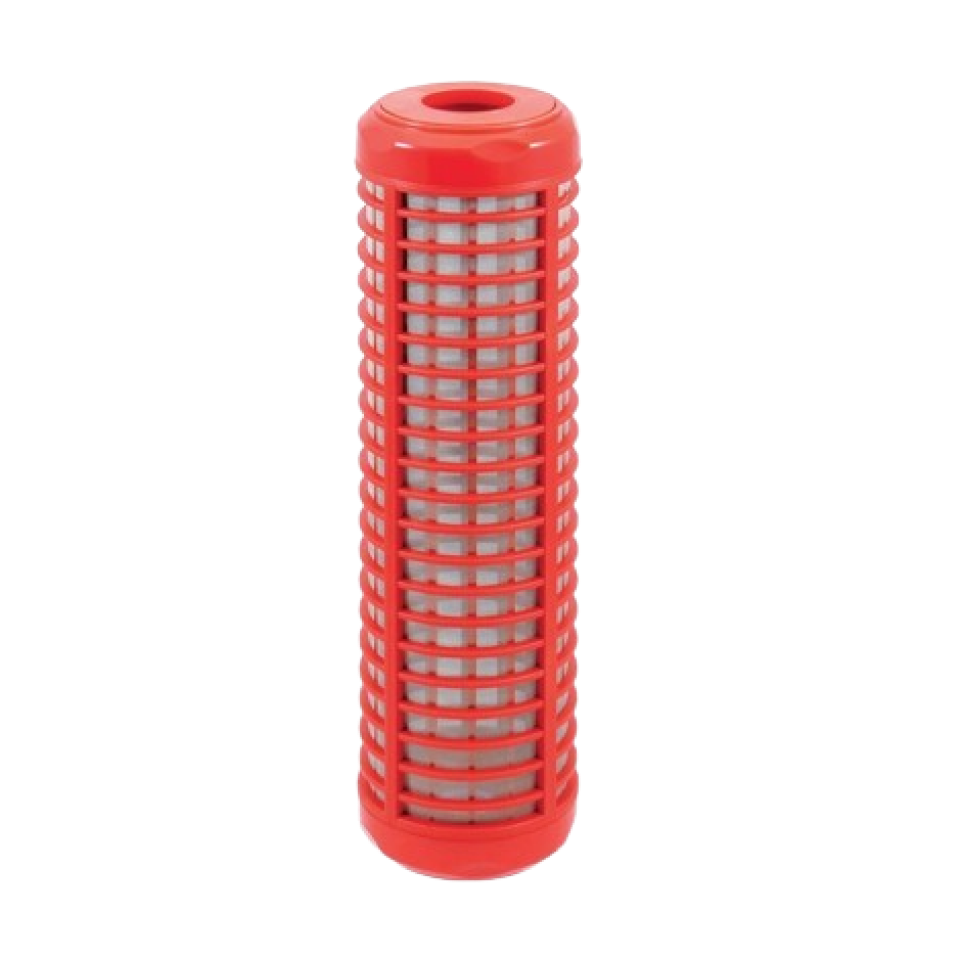

Inox washable cartridge HW

CHRX INOX hot water washable cartridge is designed to protect boilers, by filtering sand, scale, rust.
Versatile industrial use includes protecting water pumps, irrigation and cooling systems, car wash services, filtration of hot water from thermal power plants.

‍

‍

Send request

  • Resistant to extreme washings and still be reused thanks to SS net
  • Hot water treatment up to 90 °C
  • Uniform flow and low pressure drop due to cylindrical shape
  • High pressure resistance thanks to the honeycomb structure
  • Suitable for drinking water treatment
  • Complies with DM25 standards (ITALY)

  • Delivery to Nothern Ireland £60.00

    (Within three days)

  • Standart delivery (exсept for Northern Ireland) £5.00

    (Within three days)

  • Express delivery (exсept for Northern Ireland) £8.50

    (Next day)

Size
2.5" × 10"
Recommended flow rate
8
L/min
Maximum working temperature
4 - 90
°C
Filtration rating
60
micron

Technical specifications

  • Model - CHRX
  • Filtration - Sediments
  • Filtering medium - Stainless steel AISI 304
  • Inter core - Reinforced Polypropylene
  • Valves - Reinforced Polypropylene
  • Gasket - Elastomer
  • Connection - DOE
  • Working temperature - From 4°C (39°F) to 90°C (194°F)
  • Cartridge type - Washable
  • Maintenance - Quarterly
  • Duration - 24 months
  • Size - 9” ¾
  • Flow rate, l/h - 3 500
  • Filtration rating, µ - 60

‍

‍

‍

Product
Image Size

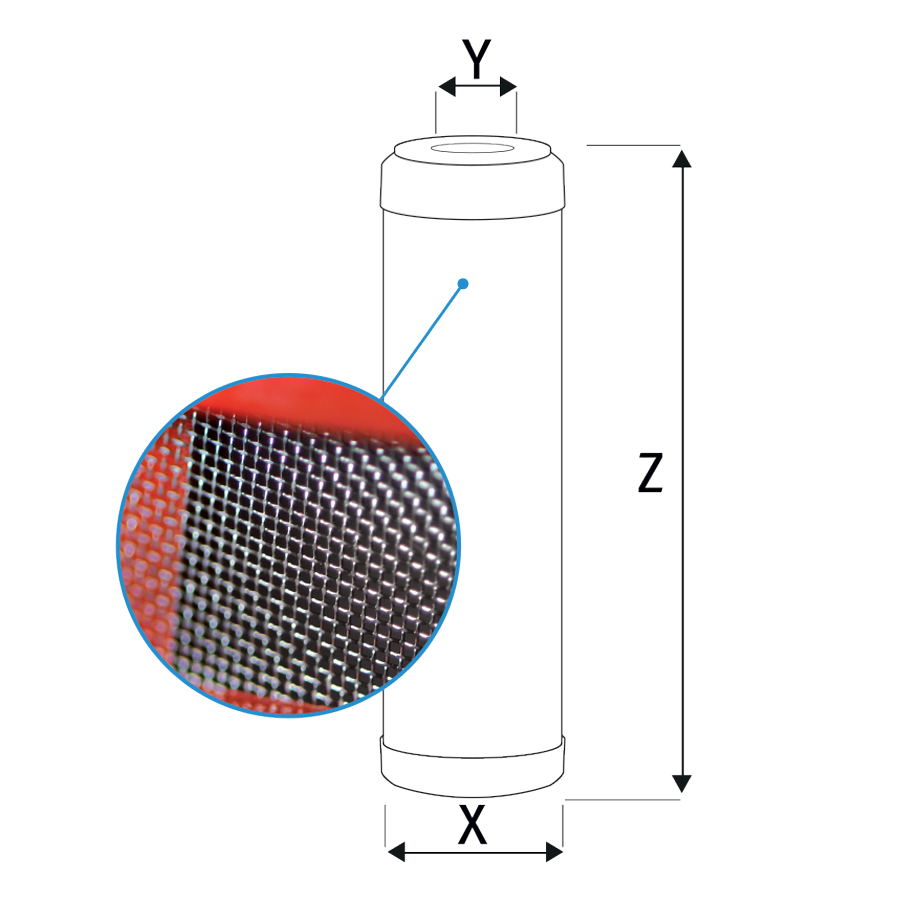

DIMENSIONS, H×W×D:
248 x 70 x 28
mm
Filter weight
kg
Price on request
Out of stock
