FFBN2P5500

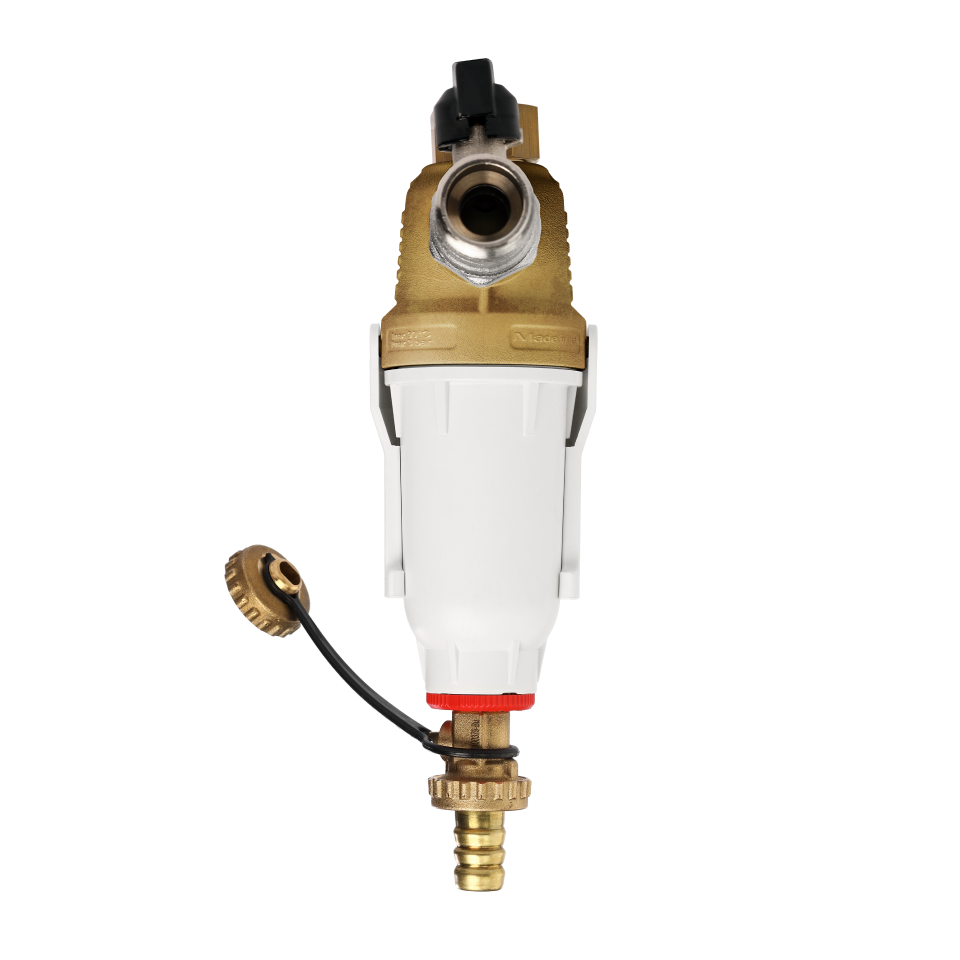

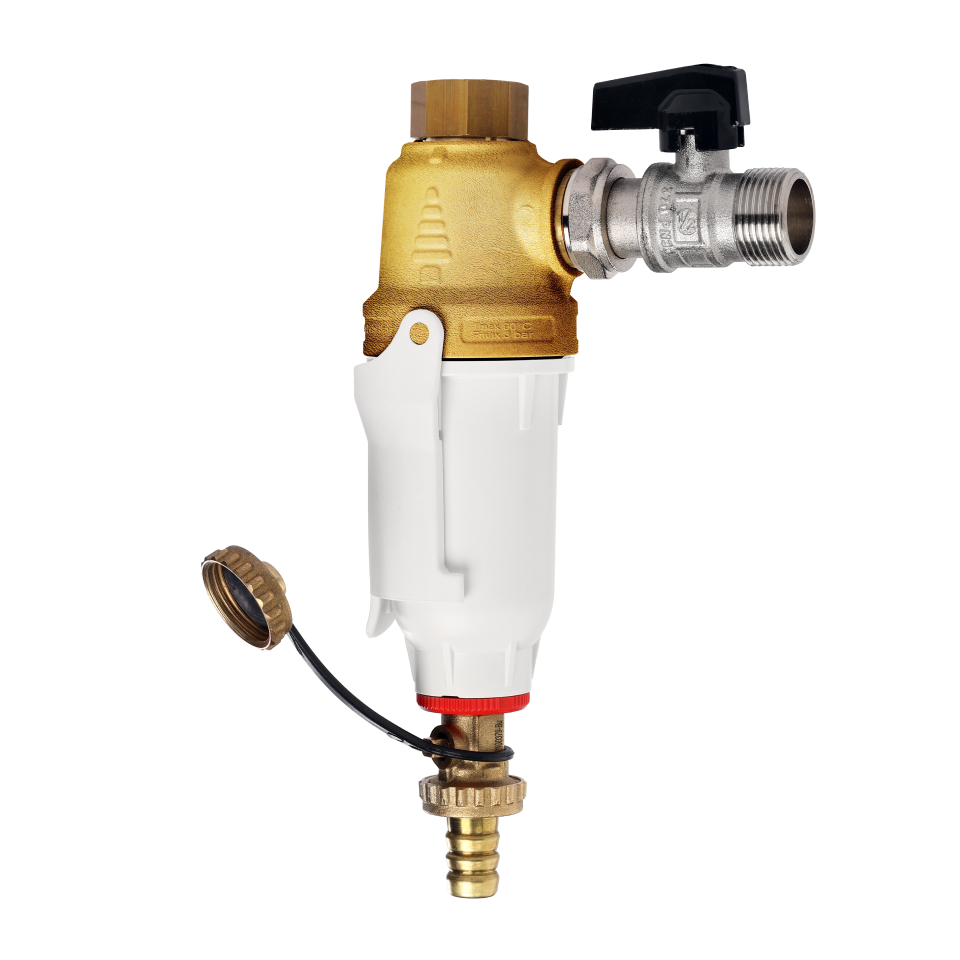

DIMA BRASS filter with brass insert ¾" – 800 micron
DIMA BRASS sludge filter is specifically designed to protect domestic heating systems and boilers. It is installed on the return circuit feeding after the last radiator. The stainless steel cartridge, combined with robust neodymium magnets, efficiently removes both metallic and non-metallic particles, particularly rust and sand.
TDS DIMA BRASS
Technical specifications

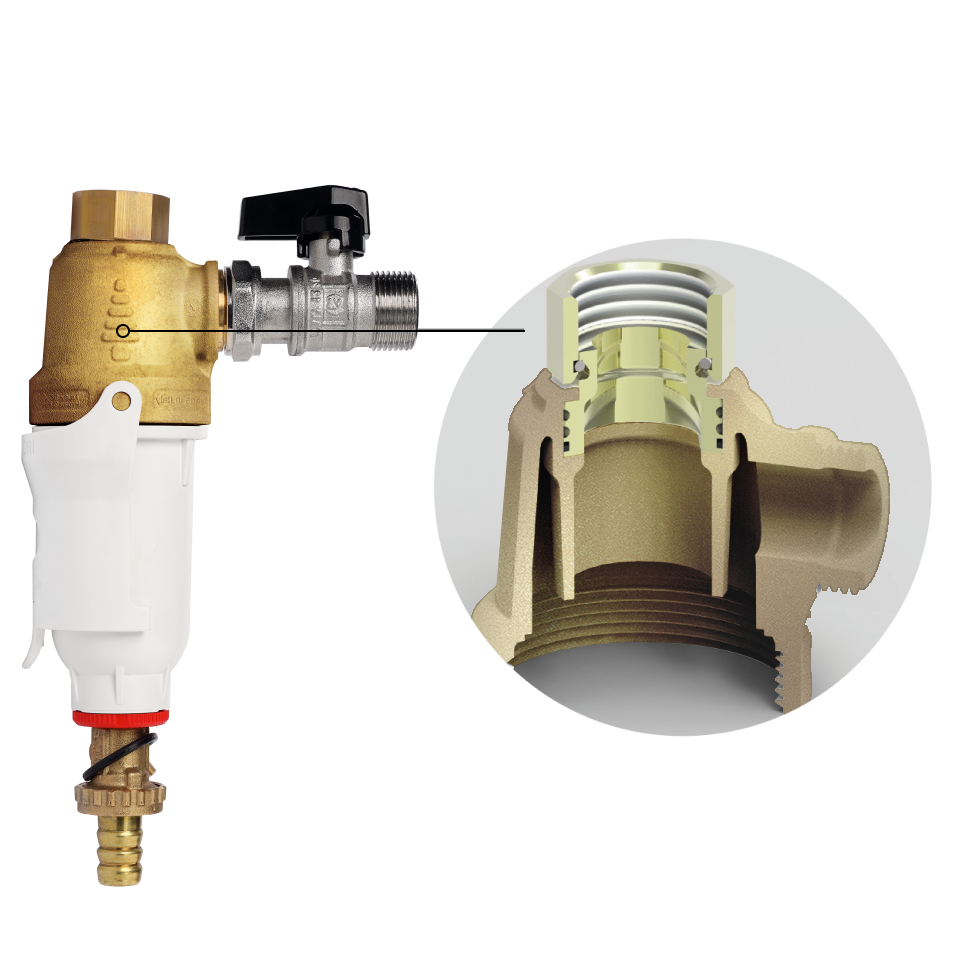

- Head: BRASS CW 614 N
- Clamping: Threaded
- Bowl: Reinforced heat-stabilized PA* 66 (white)
- O-ring: NBR 70
- Max. Working Pressure: 6 bar
- Working Temperature: From 5°C (41°F) to 90°C (194°F)
- Cartridge: SS** AISI 304
- Cartridge Type: Washable
- Maintenance: Quarterly
- Duration: 24 months

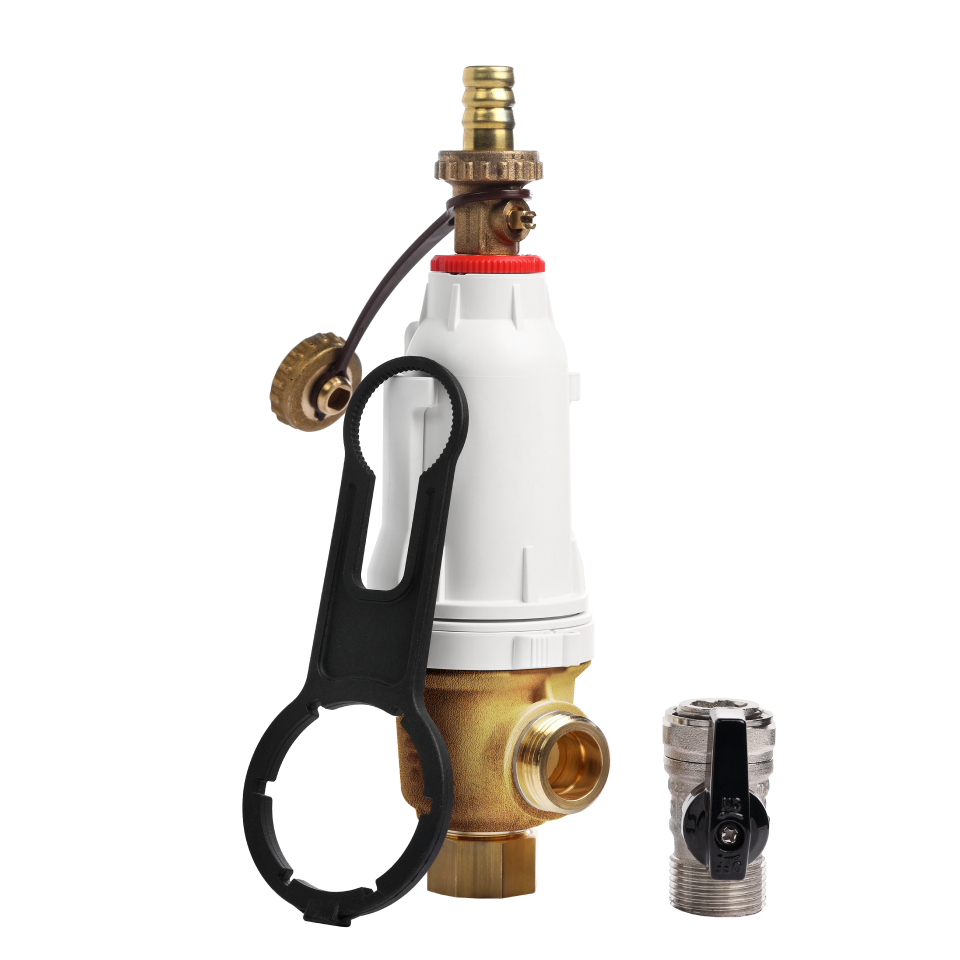

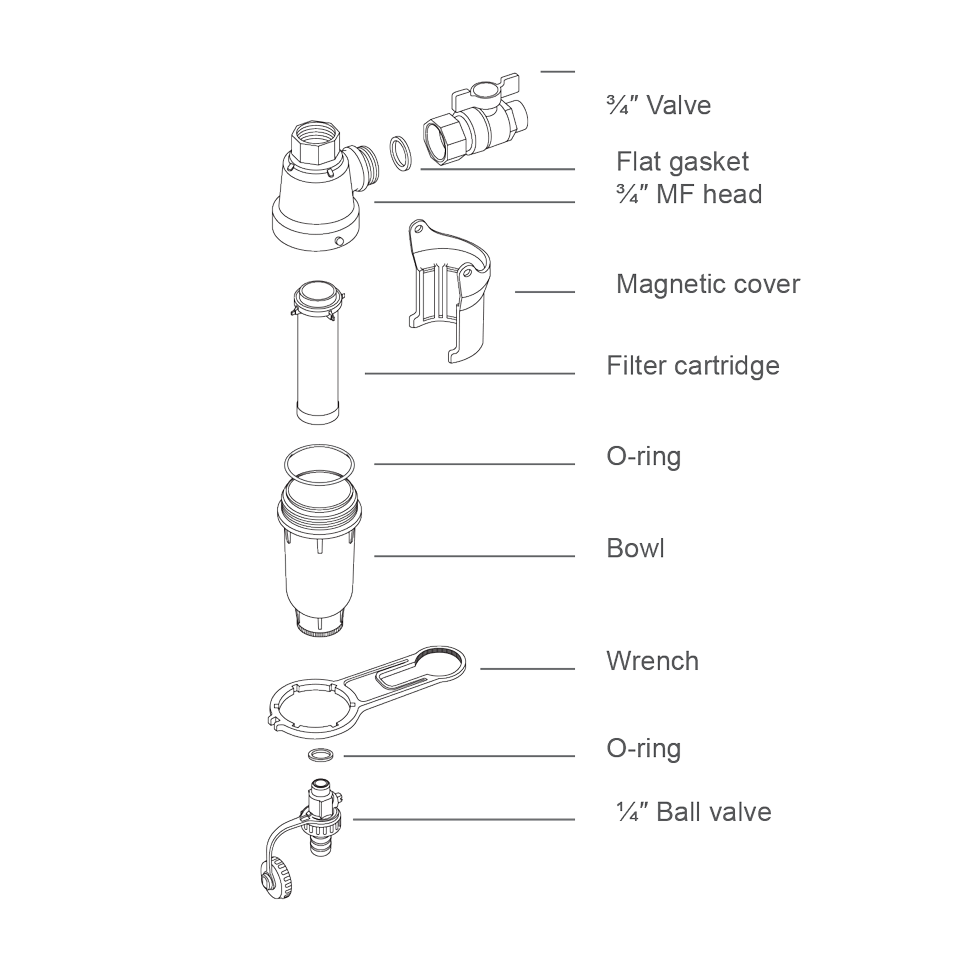

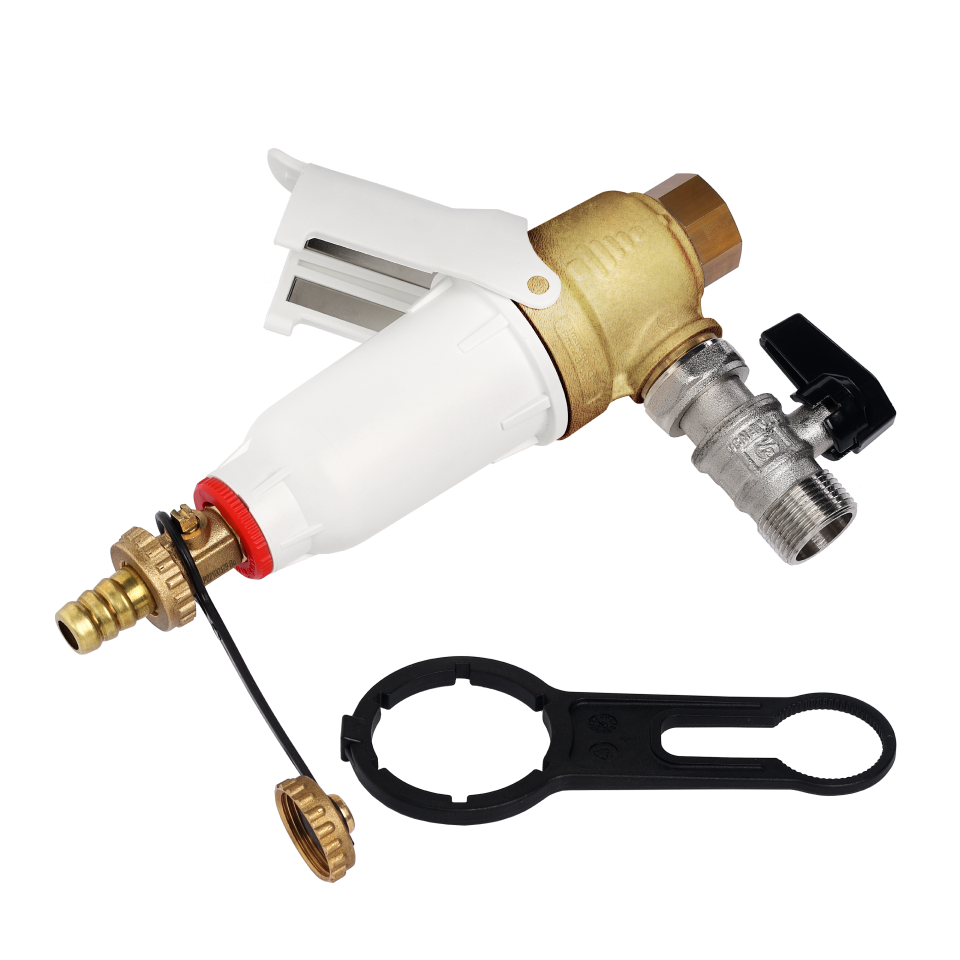

- Package Includes: Filter, cartridge, service wrench, two ball valves
- IN/OUT Threads: ¾” MF 90°
- Filtration Rating: 800 µm
- Flow Rate: 2 000 l/h
*Nylon
** Stainless steel
DIMA PRO MAGNETIC SLUDGE FILTERS IN OTHER SIZES
- FFBN2P5501 - DIMA BRASS Filter with Brass Insert ¾" – 600 Micron:
- IN/OUT Threads: ¾” MF 90°
- Filtration Rating: 600 µm
- Flow Rate: 1 800 l/h
- FFBN2P5502 - DIMA BRASS Filter with Brass Insert ¾" – 1000 Micron:
- IN/OUT Threads: ¾” MF 90°
- Filtration Rating: 1 000 µm
- Flow Rate: 2 500 l/h
Product
Image Size

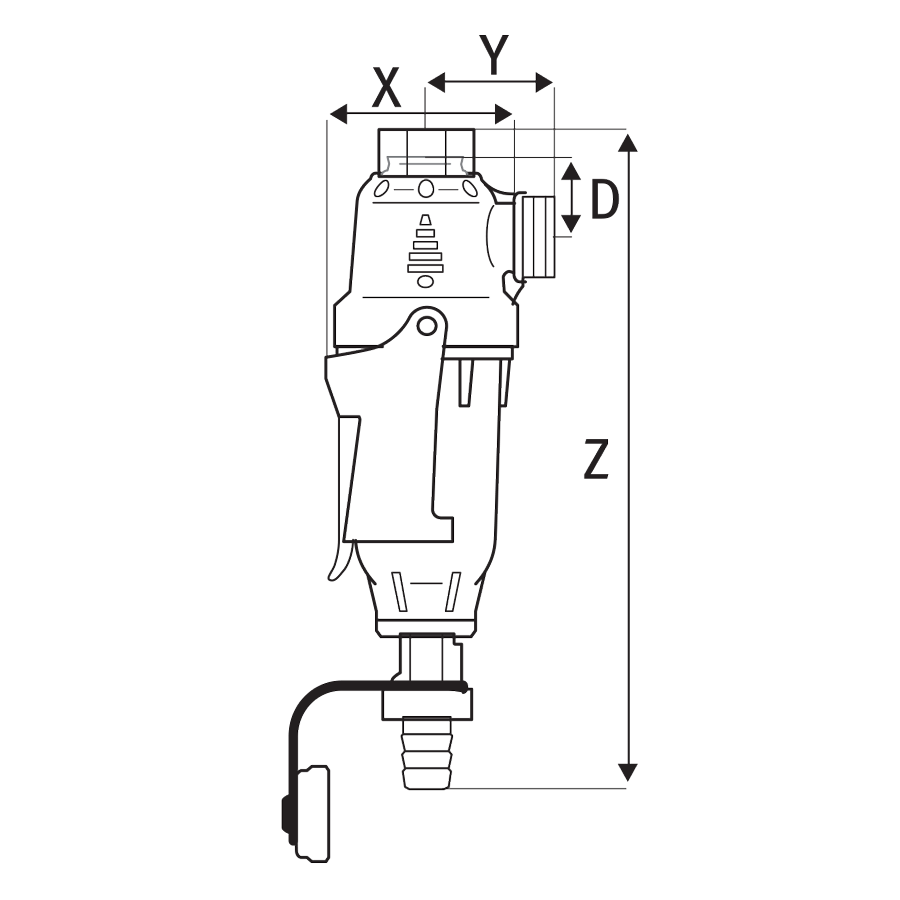

DIMENSIONS, H×W×D:
218 x 65 x 41
mm
Filter weight
1
kg
