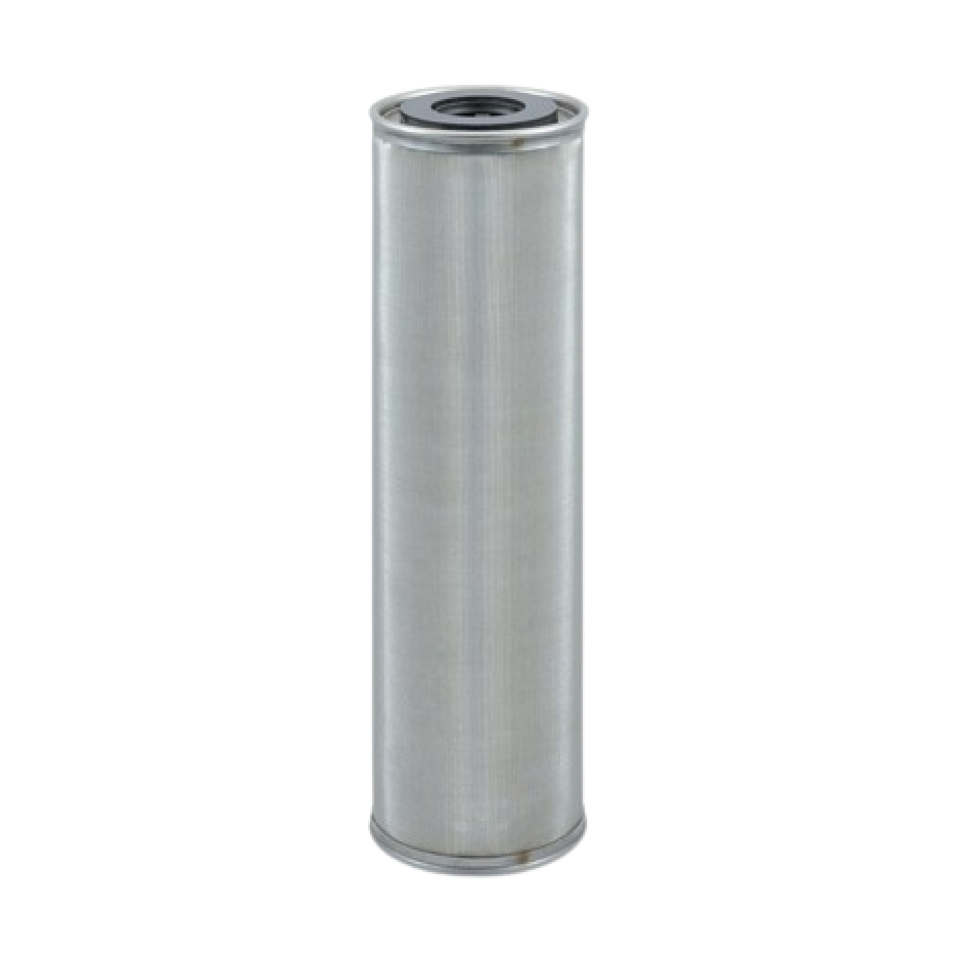

CXXL INOX 304 water washable cartridge is designed to protect boilers, by filtering sand, scale, rust.
Versatile industrial use includes protecting water pumps, irrigation systems, car wash services, filtration of water in cosmetics and food industries, hot water treatment from thermal power plants, filtration of high temperature oils, and resin.
Size
2.5" × 10"
Recommended flow rate
8
L/min
Maximum working temperature
4 - 100
°C
Filtration rating
60
micron
Technical specifications
- Model - CXXL
- Filtration - Stainless steel AISI 304
- Filtering medium - INOX AISI 304
- Inter core - Polypropylene
- Valves - Polypropylene
- Gasket - Elastomer
- Connection - DOE
- Working temperature - From 4°C (39°F) to 100°C (212°F)
- Cartridge type - Washable
- Maintenance - Quarterly
- Duration - 24 months
- Size - 9” ¾
- Flow rate, l/h - 4 000
- Filtration rating, µ - 60
Product
Image Size
DIMENSIONS, H×W×D:
248 x 70 x 28
mm
Filter weight
kg
TDS CXXL Inox 304 washable cartridge
