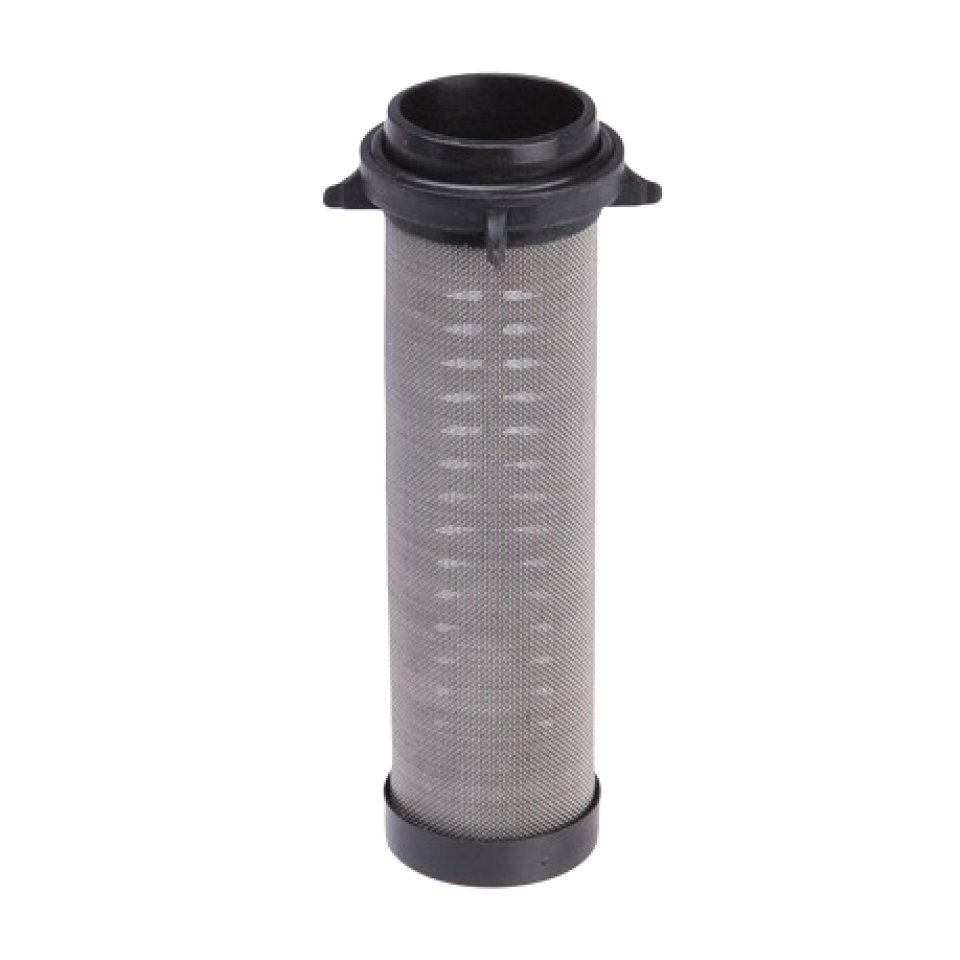

The CXRL 304 stainless steel mesh washable cartridge is designed to protect boilers by filtering sand, scale, rust, and hot water from hydroelectric applications. Its versatility extends to industrial use, including protecting water pumps, boilers, irrigation systems, cooling systems, car wash services, and the food industry. Regeneration is achieved through mechanical or counter-current chemical washing, ensuring prolonged and efficient reuse.
Technical specifications
- Model: CXRL
- Filtration: Sediments
- Filtering Medium: Stainless steel AISI 304
- Internal Support: Nylon
- External Armoring: Stainless steel
- Valves: Polypropylene
- O-ring: NBR 70
- Connection: DOE (Double Open End)
- Working Temperature: From 4°C (39°F) to 90°C (194°F)
- Cartridge Type: Washable
- Maintenance: Quarterly
- Duration: 24 months
- Flow Rate: 1 900 l/h
- Filtration Rating: 80 µm
CXRL 304 STAINLESS STEEL MESH CARTRIDGES IN OTHER SIZES
- FCXRL00010:
- Flow Rate: 2 200 l/h
- Filtration Rating: 150 µm
- FCXRL00015:
- Flow Rate: 2 500 l/h
- Filtration Rating: 250 µm
- FCXRL00020:
- Flow Rate: 2 500 l/h
- Filtration Rating: 400 µm
Product
Image Size

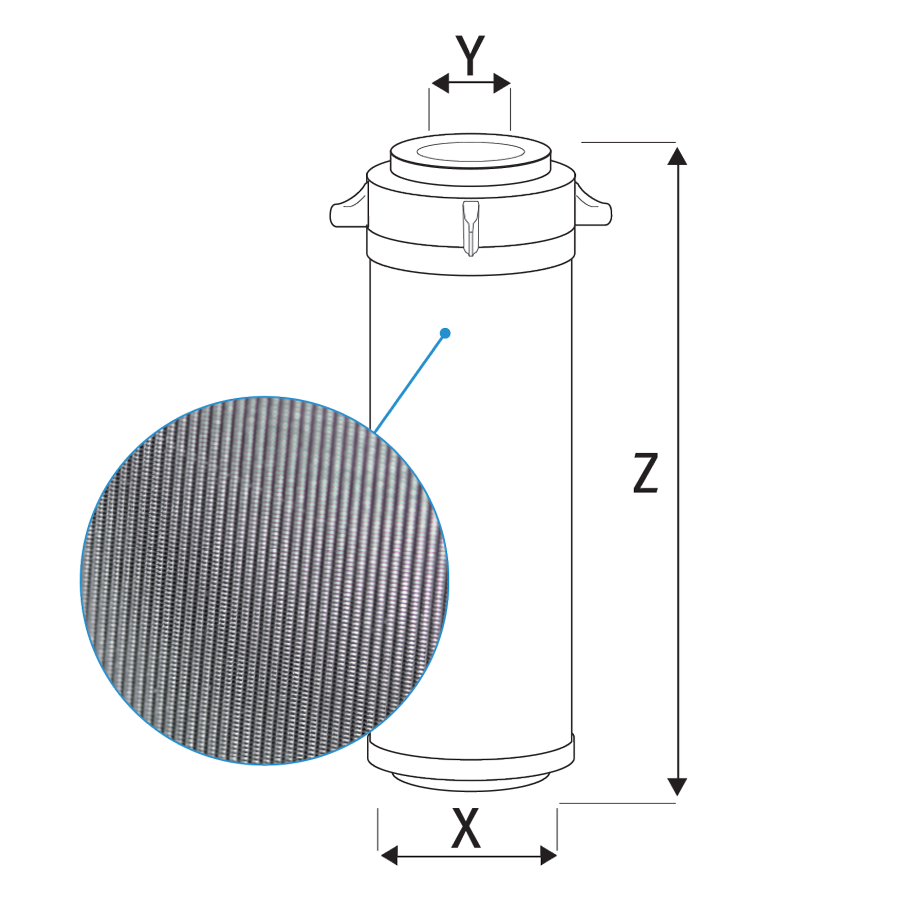

DIMENSIONS, H×W×D:
101 x 27 x 20
mm
Filter weight
kg
TDS CXRL Filter cartridge with a stainless steel 304 net
