FCXPS00005

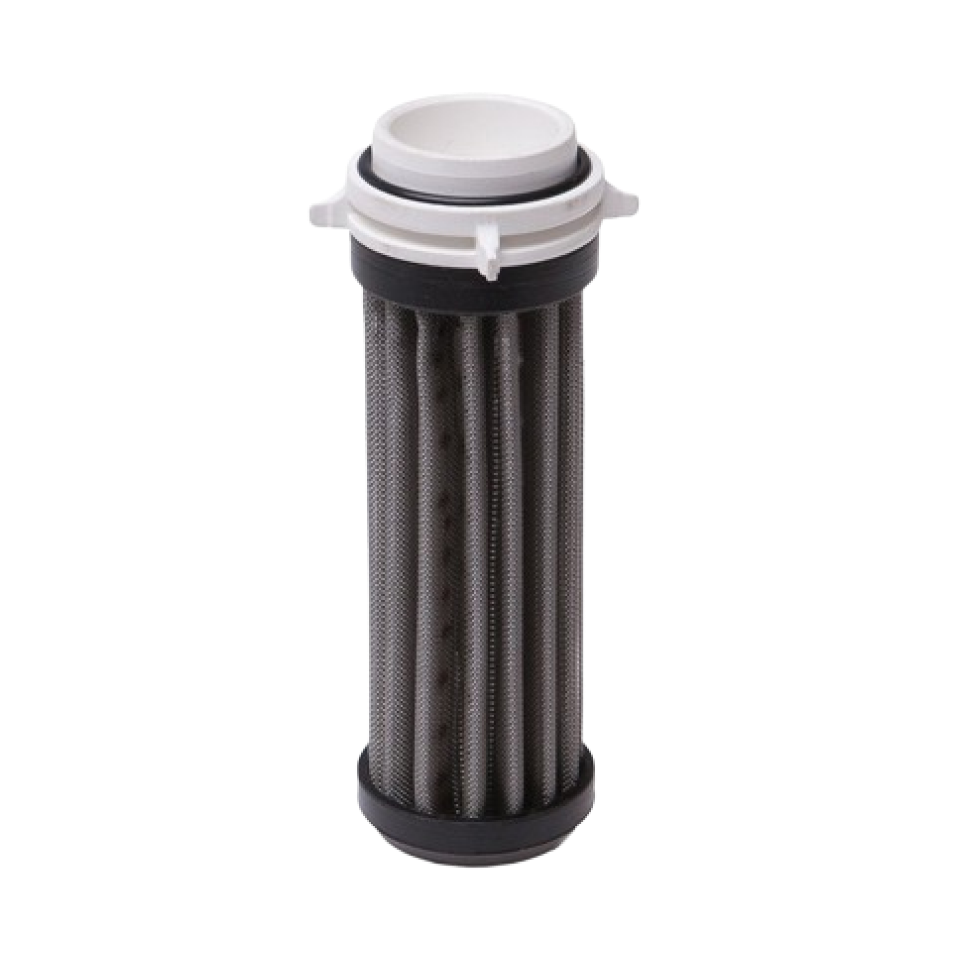

CXPS Filter cartridge with pleated stainless steel 304 net
The CXPS 304 pleated stainless steel washable cartridge is designed to protect boilers by filtering sand, scale, rust, and hot water from hydroelectric applications. Its versatility extends to industrial use, including protecting water pumps, boilers, irrigation systems, cooling systems, car wash services, and the food industry. Regeneration is achieved through mechanical or counter-current chemical washing, ensuring prolonged and efficient reuse.
TDS CXPS Filter cartridge with a pleated stainless steel 304 net
Technical specifications
- Model: CXPS
- Filtration: Sediments
- Filtering Medium: Stainless steel AISI 304
- Internal Support: Nylon
- External Armoring: Stainless steel
- Valves: Nylon
- O-ring: NBR 70
- Connection: DOE (Double Open End)
- Working Temperature: From 4°C (39°F) to 90°C (194°F)
- Cartridge Type: Washable
- Maintenance: Quarterly
- Duration: 24 months
- Flow Rate: 1 900 l/h
- Filtration Rating: 80 µm
CXPS 304 PLEATED STAINLESS STEEL CARTRIDGES IN OTHER SIZES
- FCXPS00010:
- Flow Rate: 2 200 l/h
- Filtration Rating: 150 µm
- FCXPS00015:
- Flow Rate: 2 500 l/h
- Filtration Rating: 250 µm
- FCXPS00020:
- Flow Rate: 2 500 l/h
- Filtration Rating: 400 µm
Product
Image Size

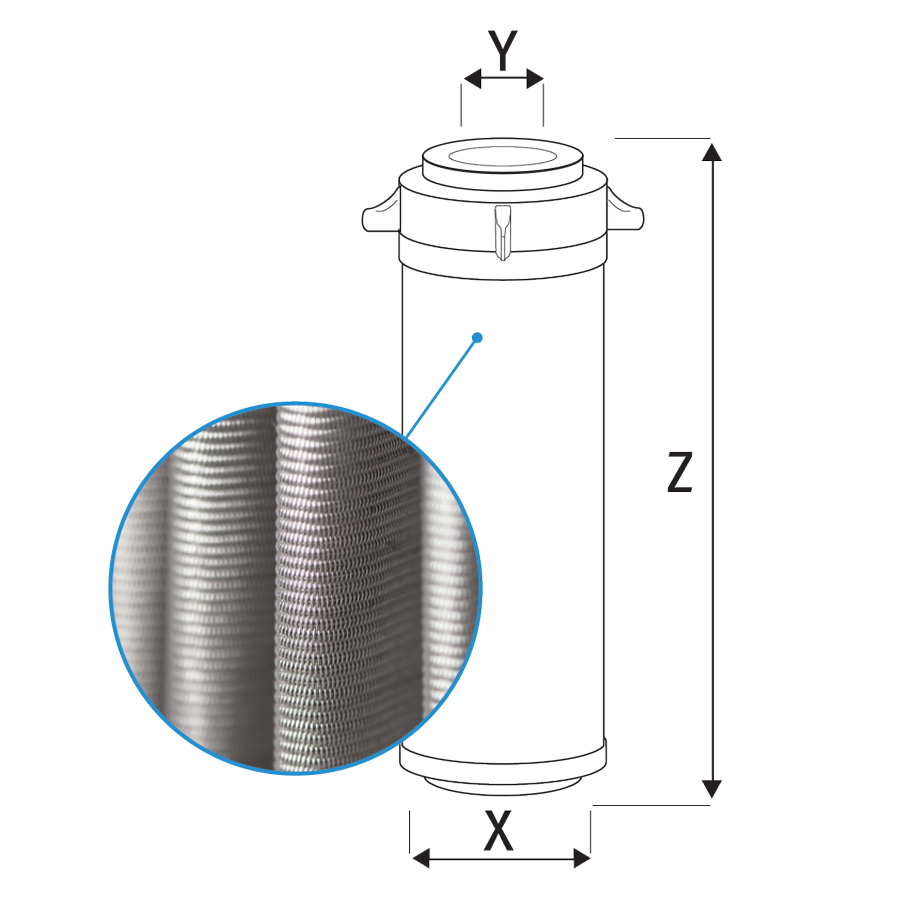

DIMENSIONS, H×W×D:
101 x 27 x 20
mm
Filter weight
kg
