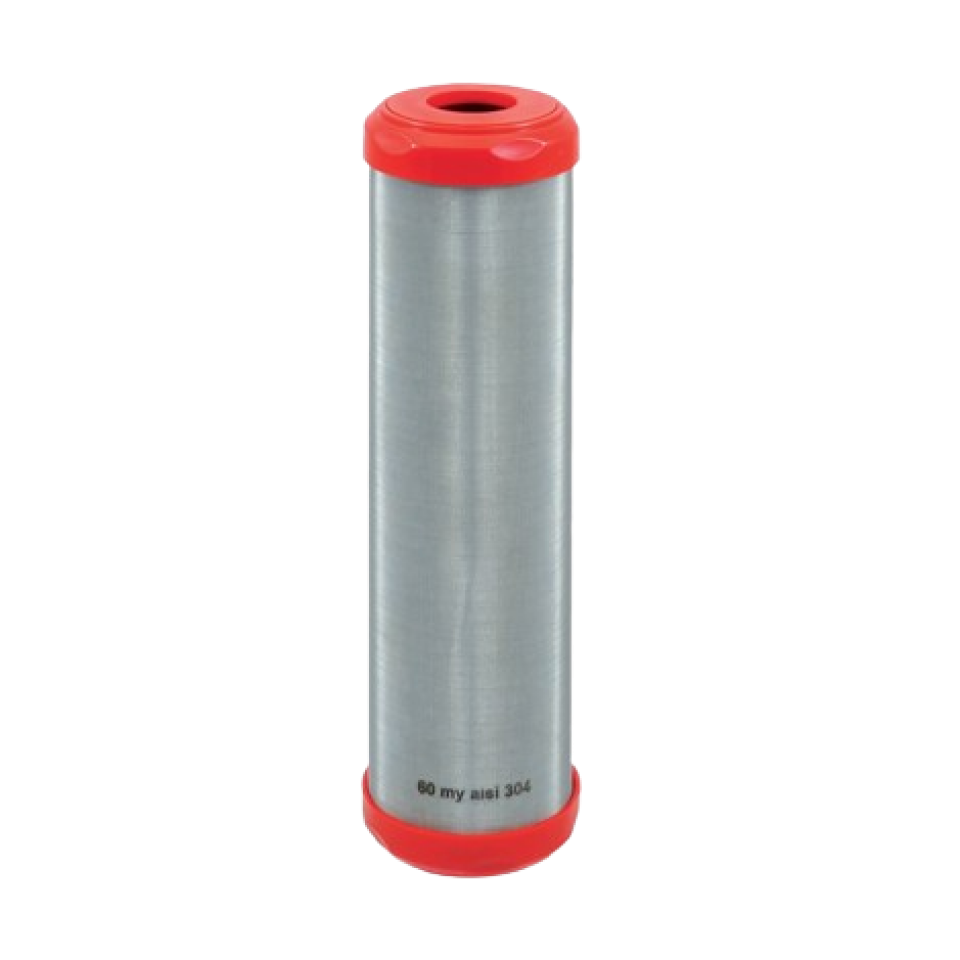

CXPL INOX 316 water washable cartridge is designed to protect boilers, by filtering sand, scale, rust.
Versatile industrial use includes protecting water pumps, irrigation systems, car wash services, filtration of water in cosmetics and food industries, hot water treatment from thermal power plants.
Size
2.5" × 10"
Recommended flow rate
8
L/min
Maximum working temperature
4 - 80
°C
Filtration rating
60
micron
Technical specifications
- Model - CXRL
- Filtration - Sediments
- Filtering medium - Stainless steel AISI 316
- Inter core - INOX AISI 316
- Valves - Polypropylene
- Gasket - Elastomer
- Connection - DOE
- Working temperature - From 4°C (39°F) to 80°C (176°F)
- Cartridge type - Washable
- Maintenance - Quarterly
- Duration - 24 months
- Size - 9” ¾
- Flow rate, l/h - 3 300
- Filtration rating, µ - 60
Product
Image Size

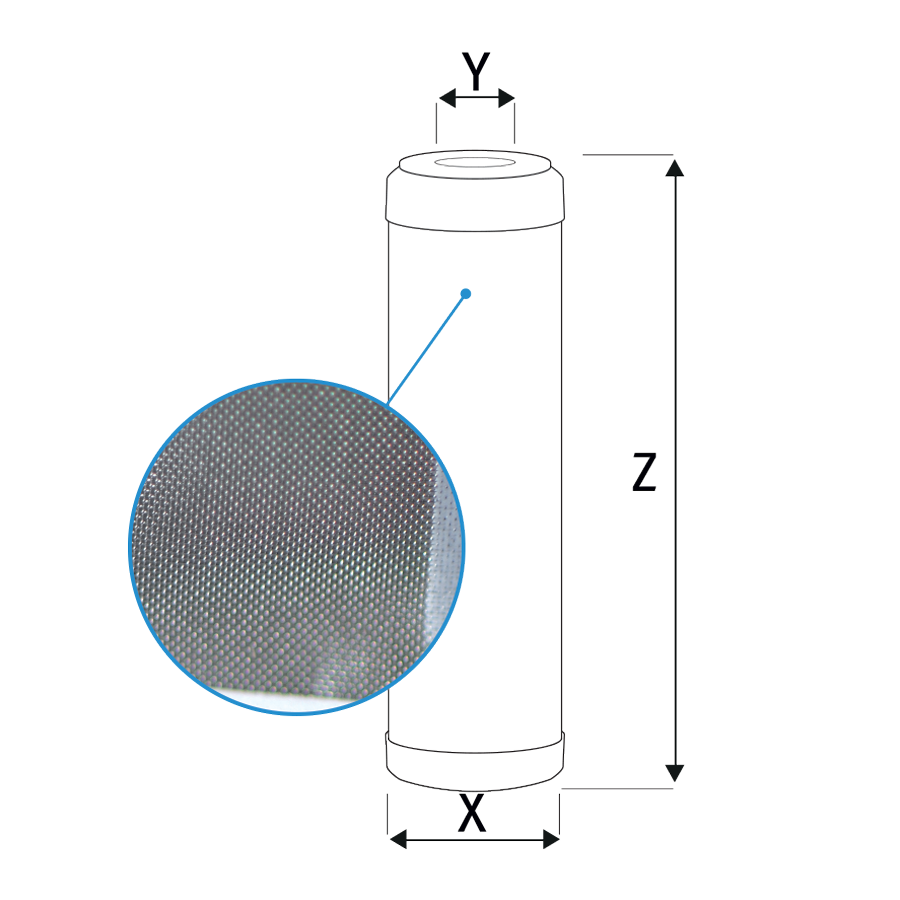

DIMENSIONS, H×W×D:
248 x 70 x 28
mm
Filter weight
kg
TDS CXPL Inox 316 washable cartridge
