FCBX3P0111

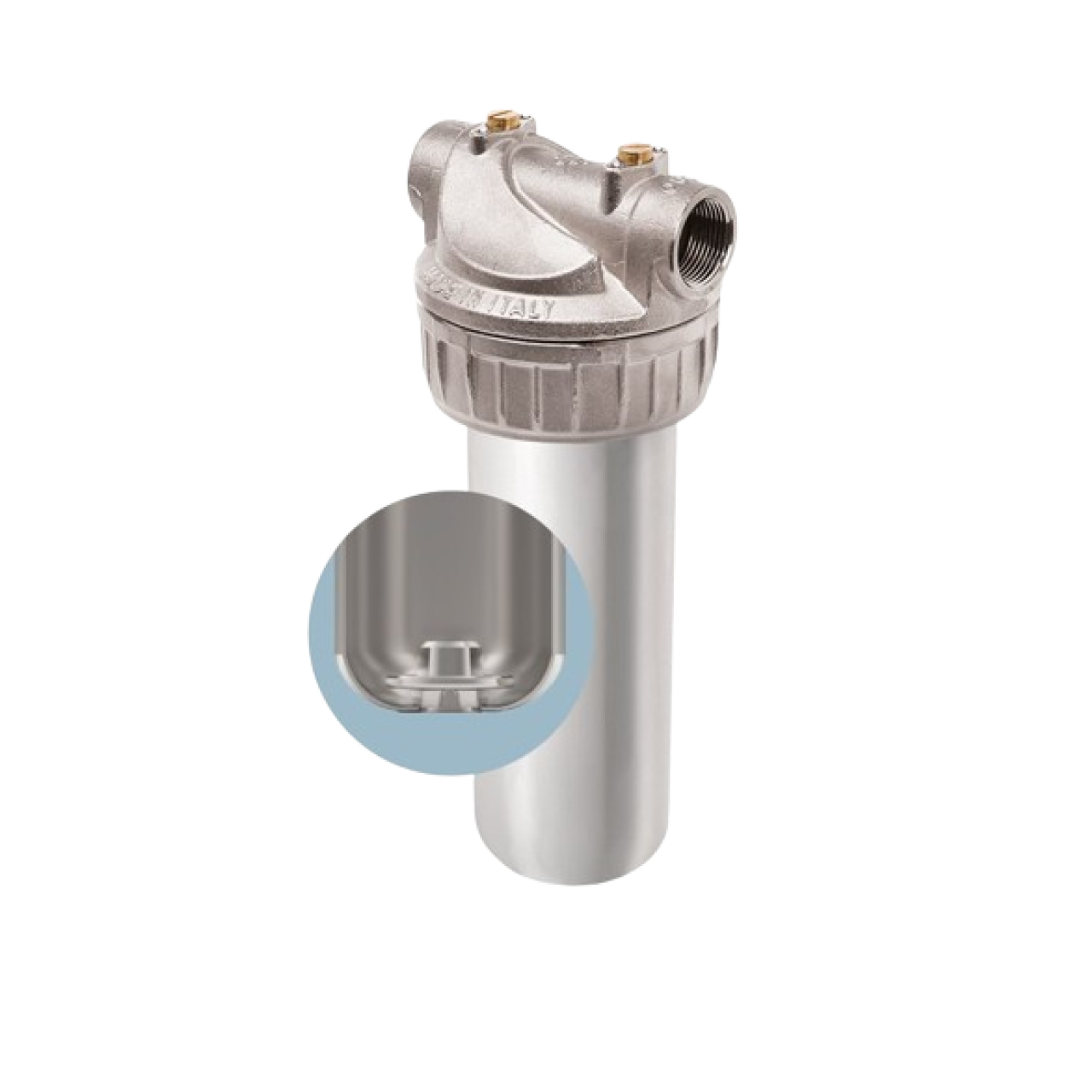

3P INOX housing in natural brass 9 ¾" – ½" F
3P INOX housing is a robust solution designed for demanding water purification applications, including high pressure, elevated temperatures, and corrosive or harsh conditions. The natural brass filter head and stainless steel housing ensure product reliability and durability. It is equipped with two breather valves.
TDS 3P INOX housing in natural brass

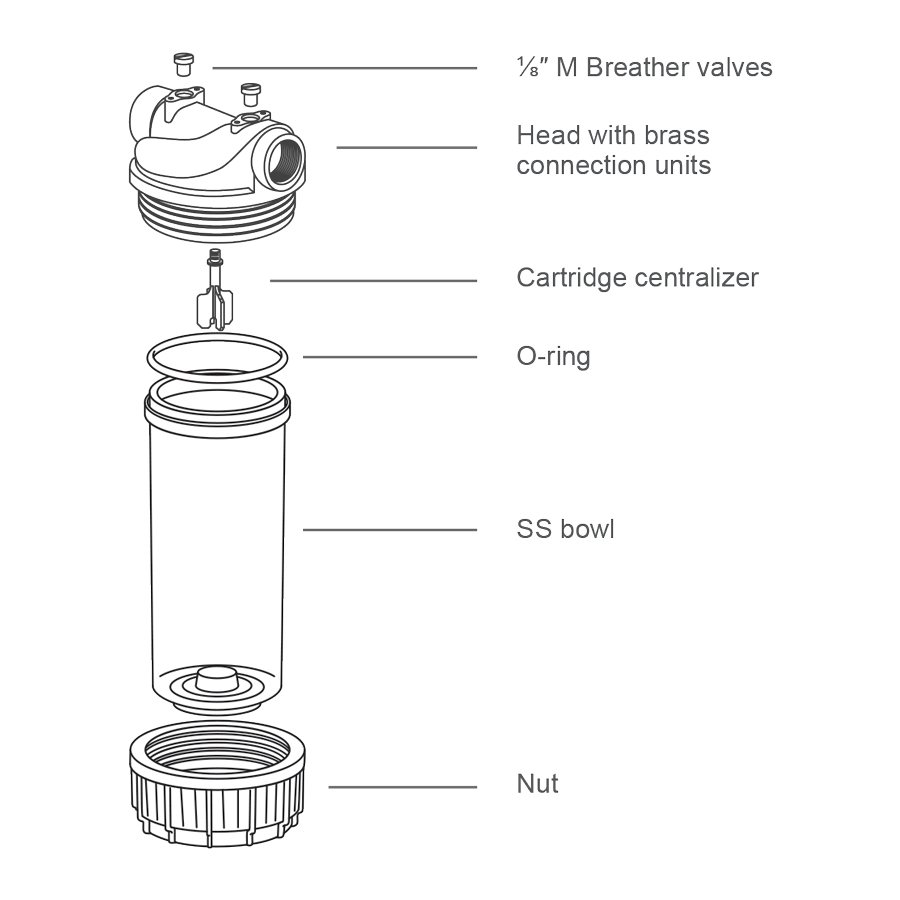

Technical specifications
- Head: Natural brass CB 753 S
- Clamping: Natural brass nut CB 753 S
- Bowl: SS AISI 304* (Stainless Steel)
- O-ring: EPDM
- Breather valve: Brass CW 614 N
- Max. working pressure: 15 bar
- Working temperature: from 5°C (41°F) to 90°C (194°F)
- Bracketing: Horizontal
- Fastening: Axle base fixing hole 66x25 mm, Screw thread M5
- Connection: BPS screw thread in inch
- Package: Empty housing without filter cartridge
- IN/OUT threads: ½" F
- Size: 9 ¾"
- Flow rate: 6 000 l/h
* Stainless steel
** Service wrench and wall bracket should be ordered separately
3P INOX NATURAL BRASS HEAD FILTER HOUSINGS IN OTHER SIZES
- FCBX3P0131:
- IN/OUT threads: ¾” F
- Size: 9 ¾"
- Flow rate: 6 500 l/h
- FCBX3P0151:
- IN/OUT threads: 1" F
- Size: 9 ¾"
- Flow rate: 7 000 l/h
- FCBX3P0166:
- IN/OUT threads: 1" ¼ F
- Size: 9 ¾"
- Flow rate: 13 000 l/h
- FCBX3P0181:
- IN/OUT threads: 1" ½ F
- Size: 9 ¾"
- Flow rate: 13 500 l/h
- FCBX3P0191:
- IN/OUT threads: 2" F
- Size: 9 ¾"
- Flow rate: 14 000 l/h
Product
Image Size

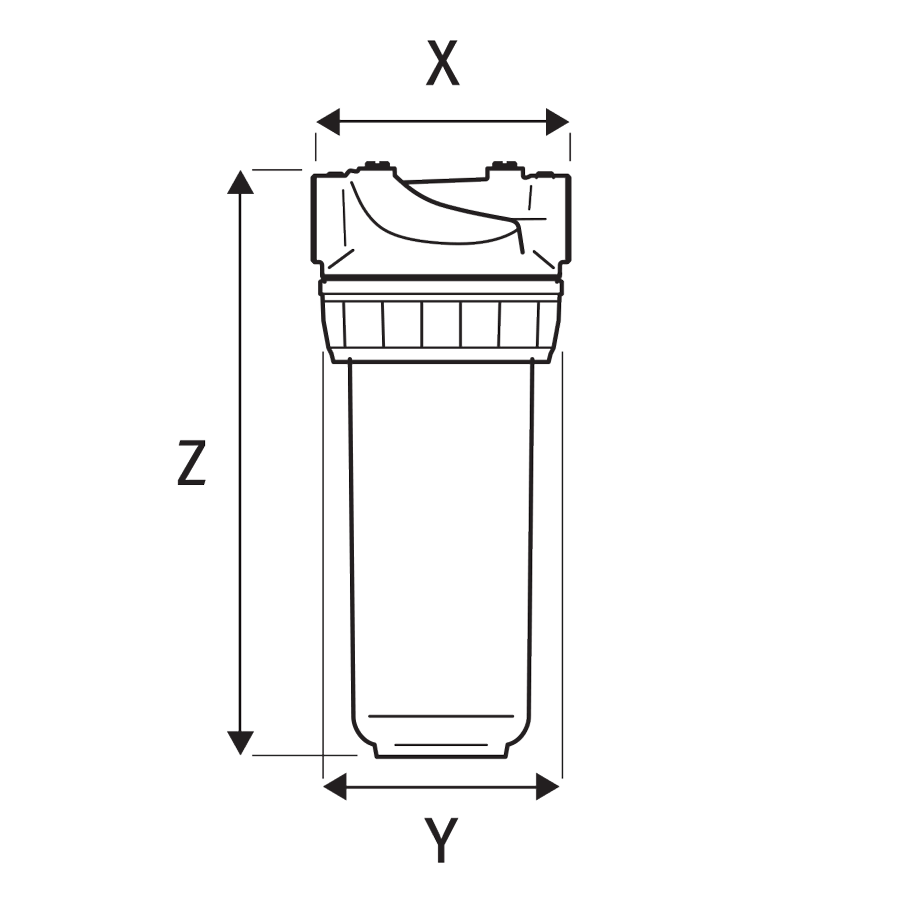

DIMENSIONS, H×W×D:
312 x 135 x 122
mm
Filter weight
0
kg
