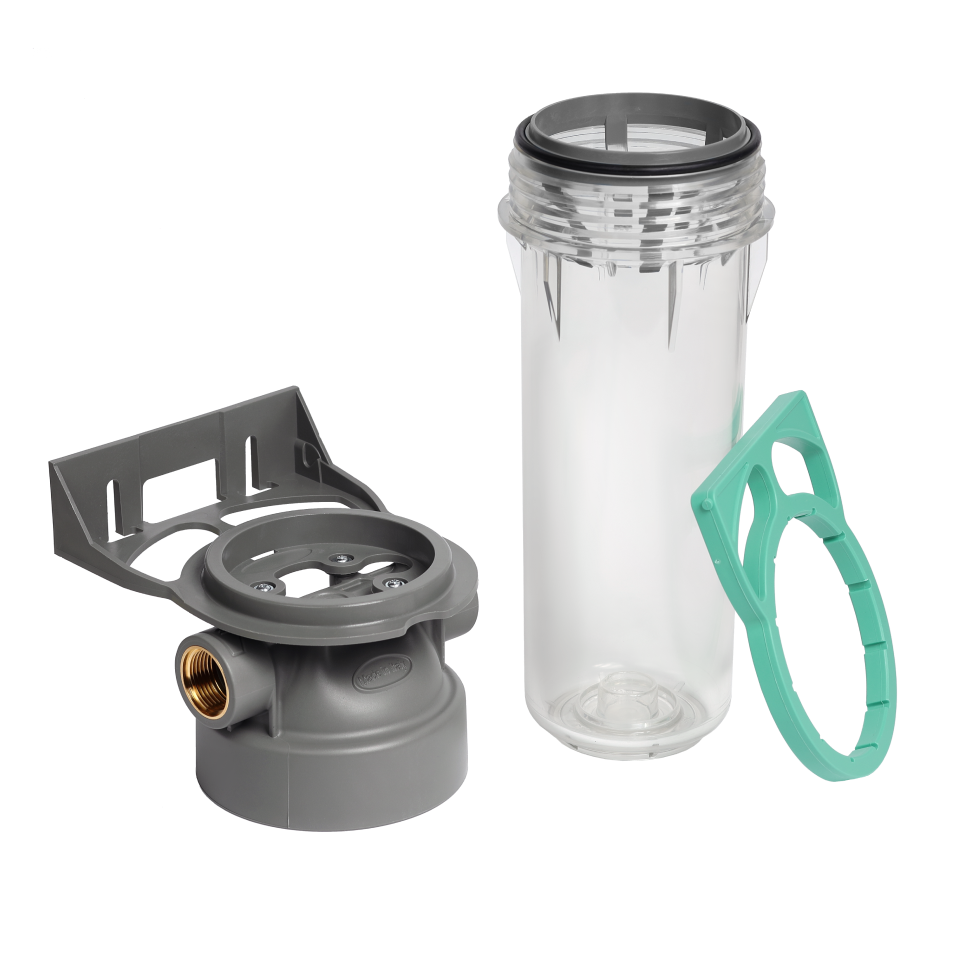

This two-piece design (head and bowl) is made for water purification in both residential and commercial applications. The bowl is constructed from durable PET material, ensuring reliability and longevity. The 2P line includes a centralizing ring for cartridges, which keeps the cartridge aligned and enables easy, quick replacement.
Technical specifications
- Materials: Bowl - polyethylene (PET); Head - polypropylene (PP) with brass connection units
- Clamping: Threaded
- O-ring: EPDM
- Max. Working Pressure: 8 bar
- Max. Working Temperature: From 5°C (41°F) to 50°C (122°F)
- Bracketing: Horizontal
- Connection: 1"
- Package: Empty housing without filter cartridge
Product
Image Size

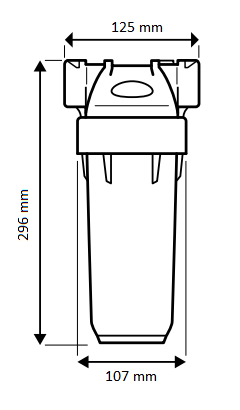

DIMENSIONS, H×W×D:
296 × 125
mm
Filter weight
kg
TDS 2P Single
