The self-cleaning filter is designed for high-level hot water filtration in both industrial and domestic applications, protecting household appliances and pipelines. The filter, made of reinforced material, ensures high resistance to burst and fatigue.
Technical specifications
- Head: Reinforced PA* 66
- Clamping: Threaded
- Bowl: SAN**
- O-ring: NBR 70
- Max. working pressure: 10 bar
- Working temperature: from 5°C (41°F) to 45°C (113°F)
- Filtration: Sediments
- Cartridge: SS** AISI 304
- Cartridge type: Washable
- Maintenance: Quarterly

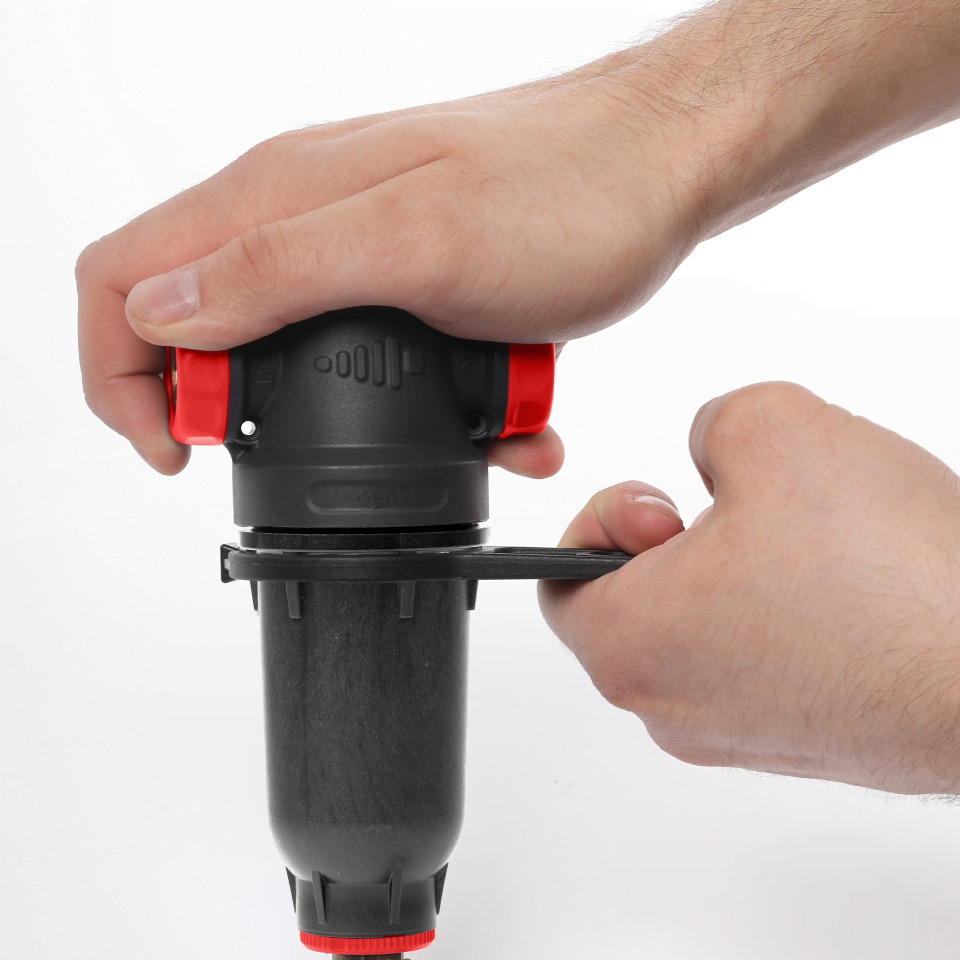

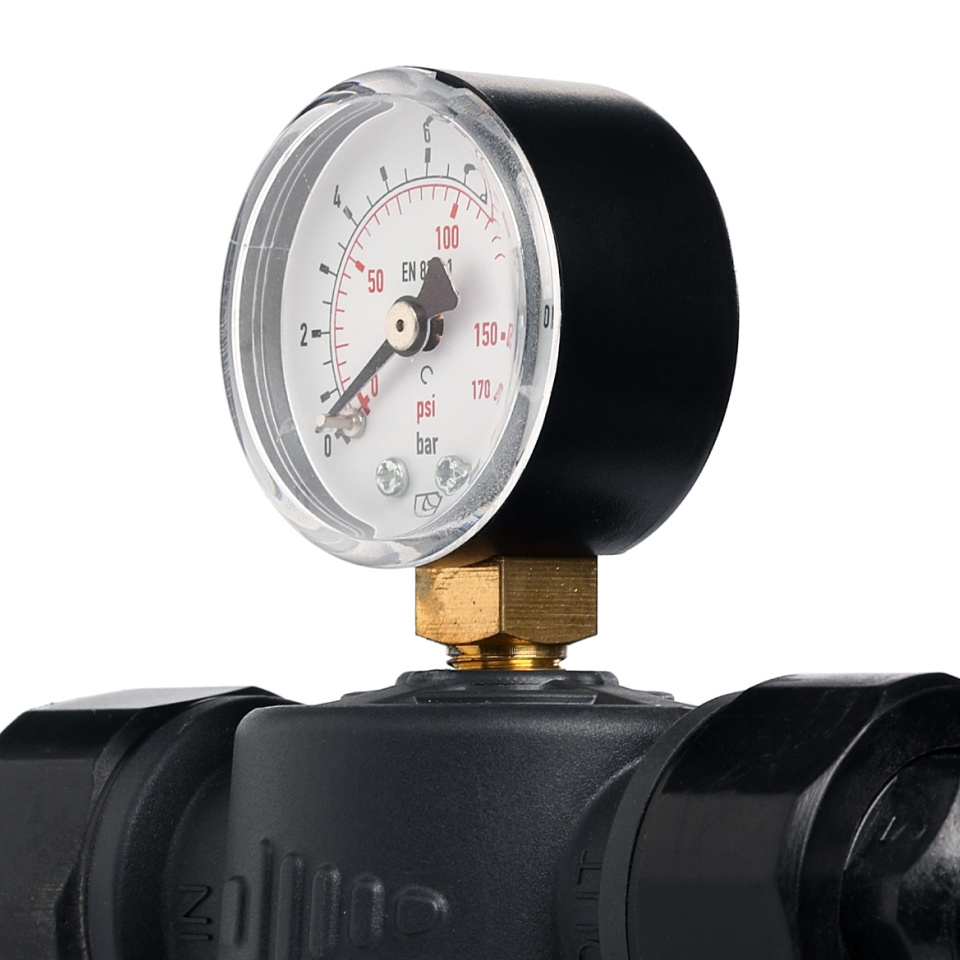

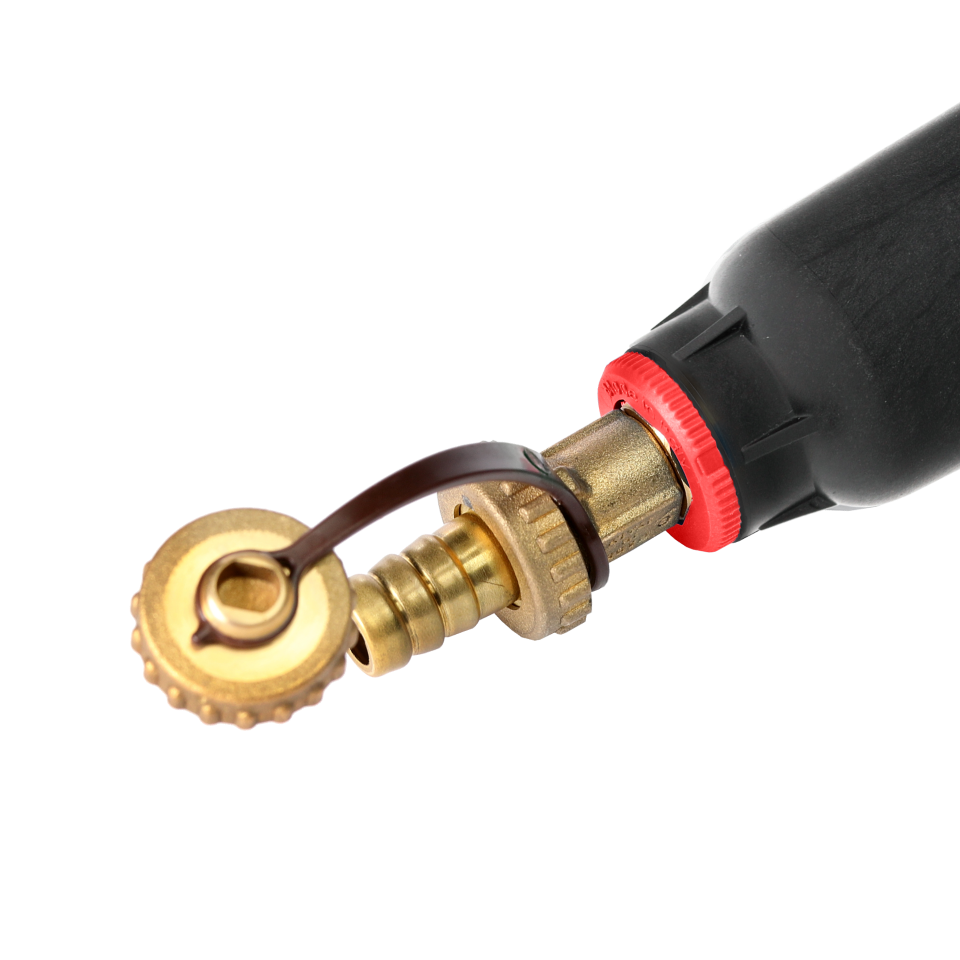

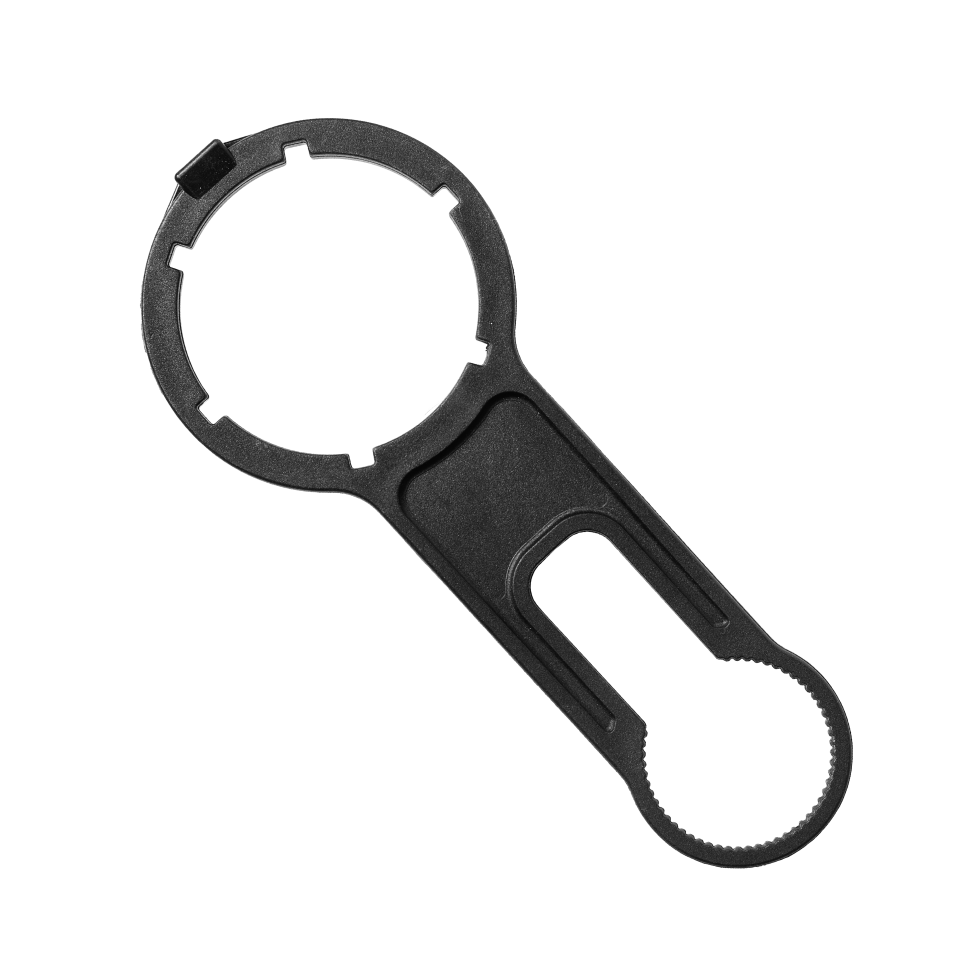

- Package: Filter, cartridge, pressure gauge, service wrench, ball valve, ½” FM and ¾” M connection units
- IN/OUT threads:
- ½":
- Filtration rating: 250 µm
- Flow rate: 1 900 l/h
- ¾":
- Filtration rating: 250 µm
- Flow rate: 2 200 l/h
- ½":
*Nylon
** Styrene acrylonitrile
Product
Image Size
DIMENSIONS, H×W×D:
205 x 49 x 84
mm
Filter weight
0
kg
FFNN2P1522

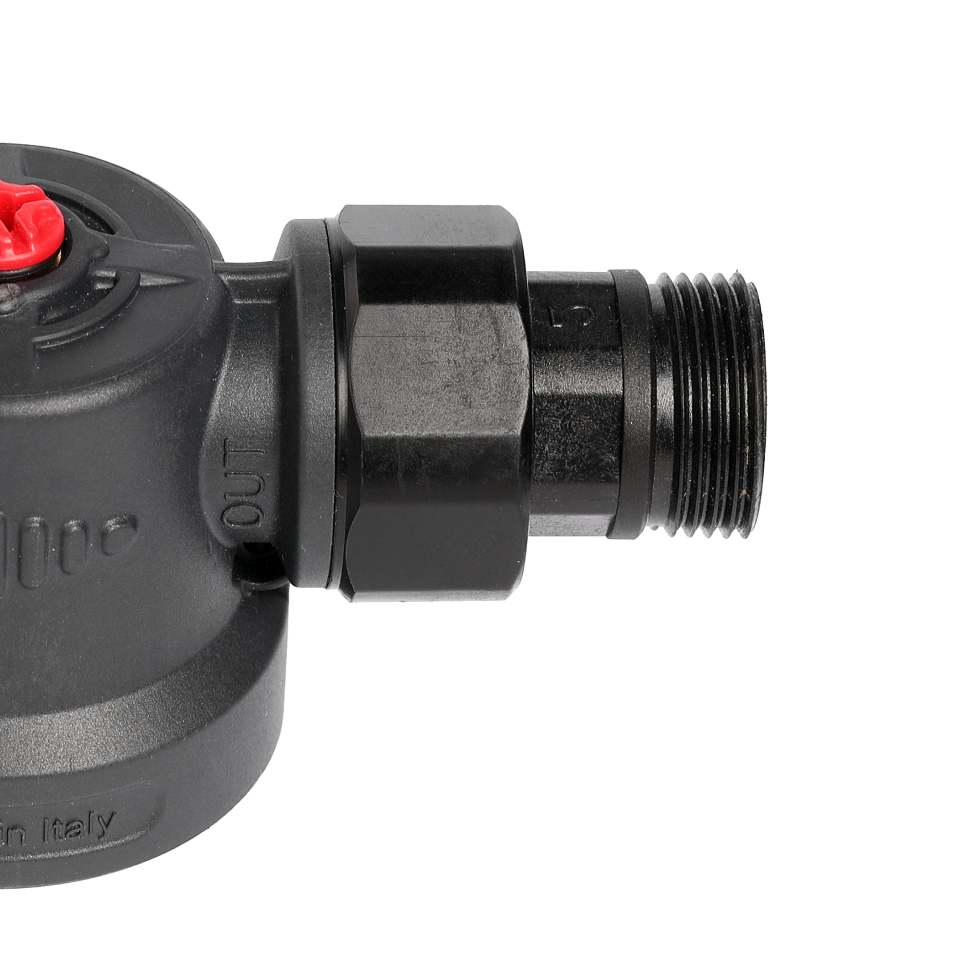

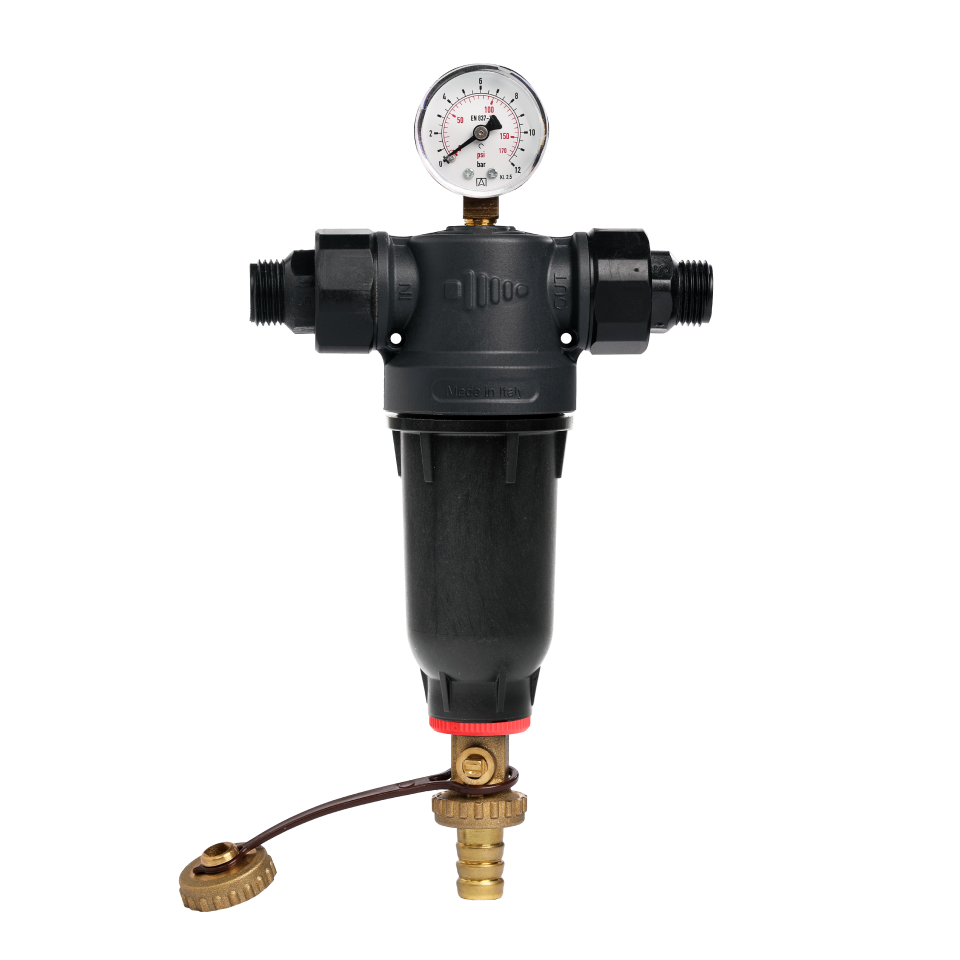

Self-Cleaning PA-R Filter with 304 Stainless Steel Mesh Cartridges, with ½” FM and ¾” M Connection
TDS Self-Cleaning PA-R filter with ½” FM and ¾” M connection
