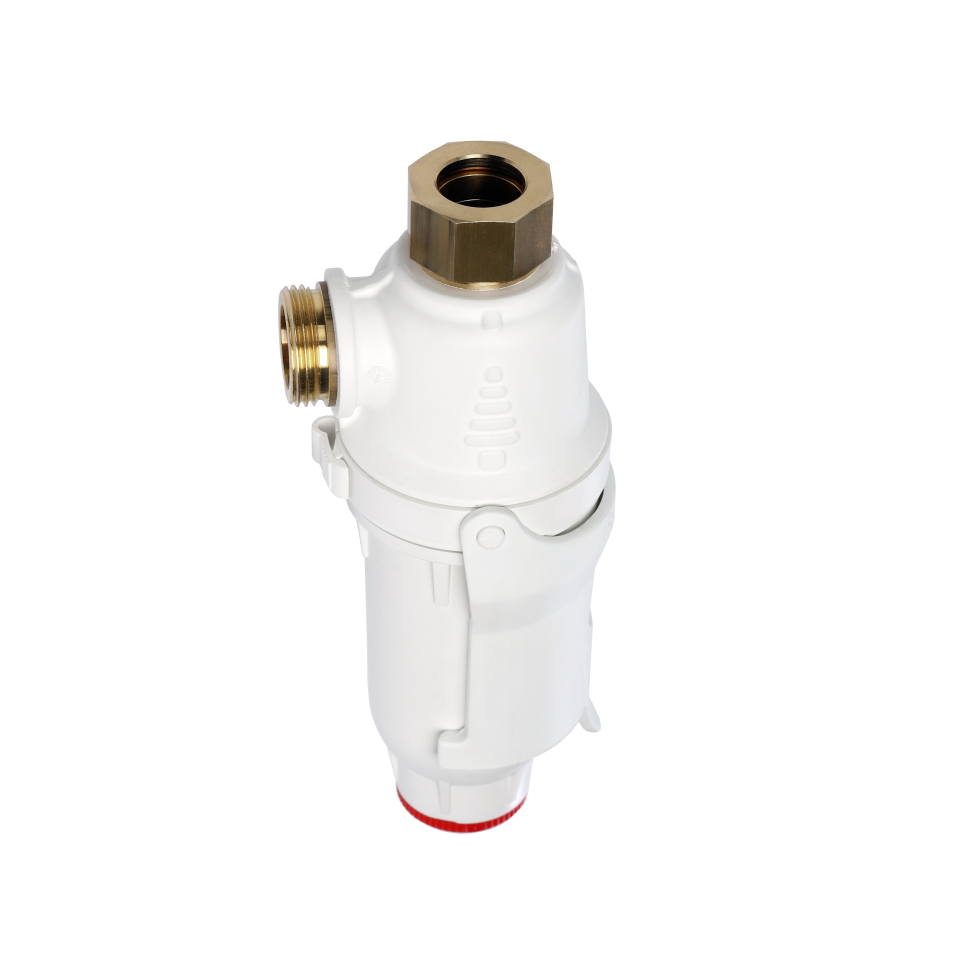

DIMA PRO sludge filter is engineered to protect domestic heating systems and boilers. It is installed on the return circuit feeding after the last radiator. The stainless steel cartridge, coupled with robust neodymium magnets, efficiently removes both metallic and non-metallic particles, particularly rust and sand.
Technical specifications
- Head: Reinforced heat-stabilized PA* 66 (white)
- Clamping: Threaded

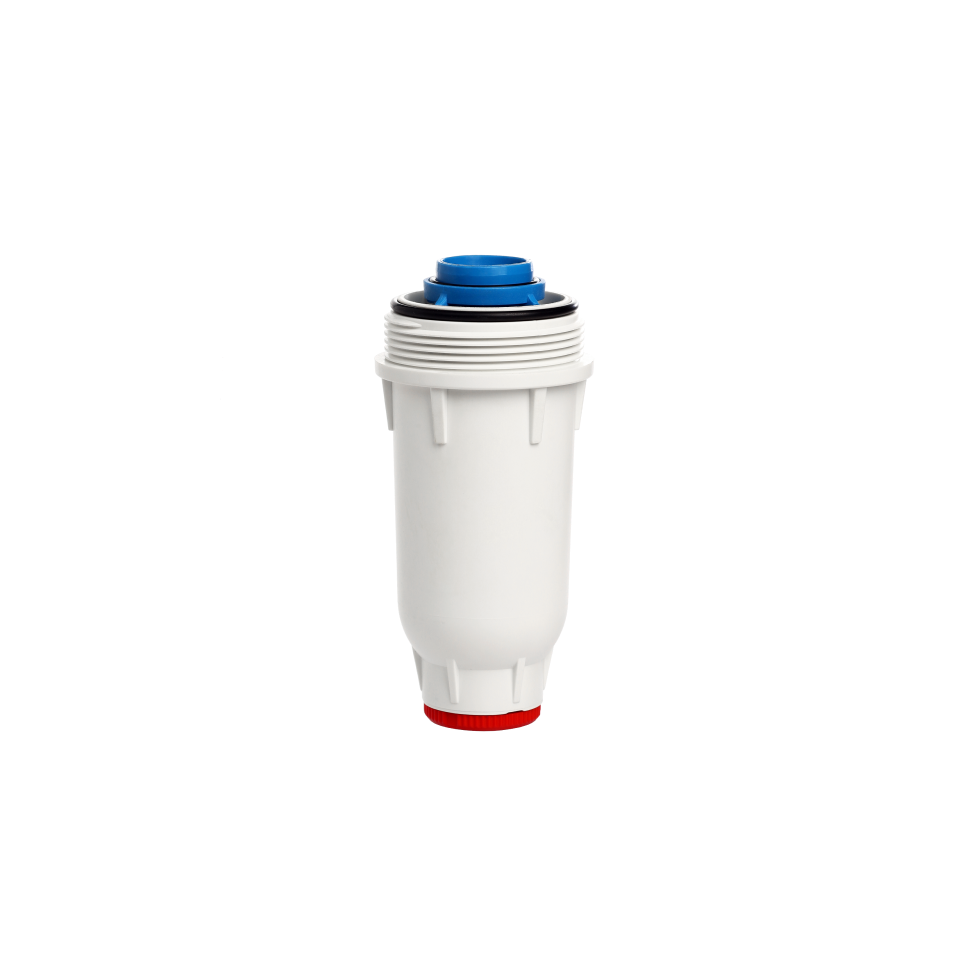

- Bowl: Reinforced heat-stabilized PA* 66 (white)
- O-ring: NBR 70
- Max. Working Pressure: 3 bar
- Working Temperature: From 5°C (41°F) to 90°C (194°F)

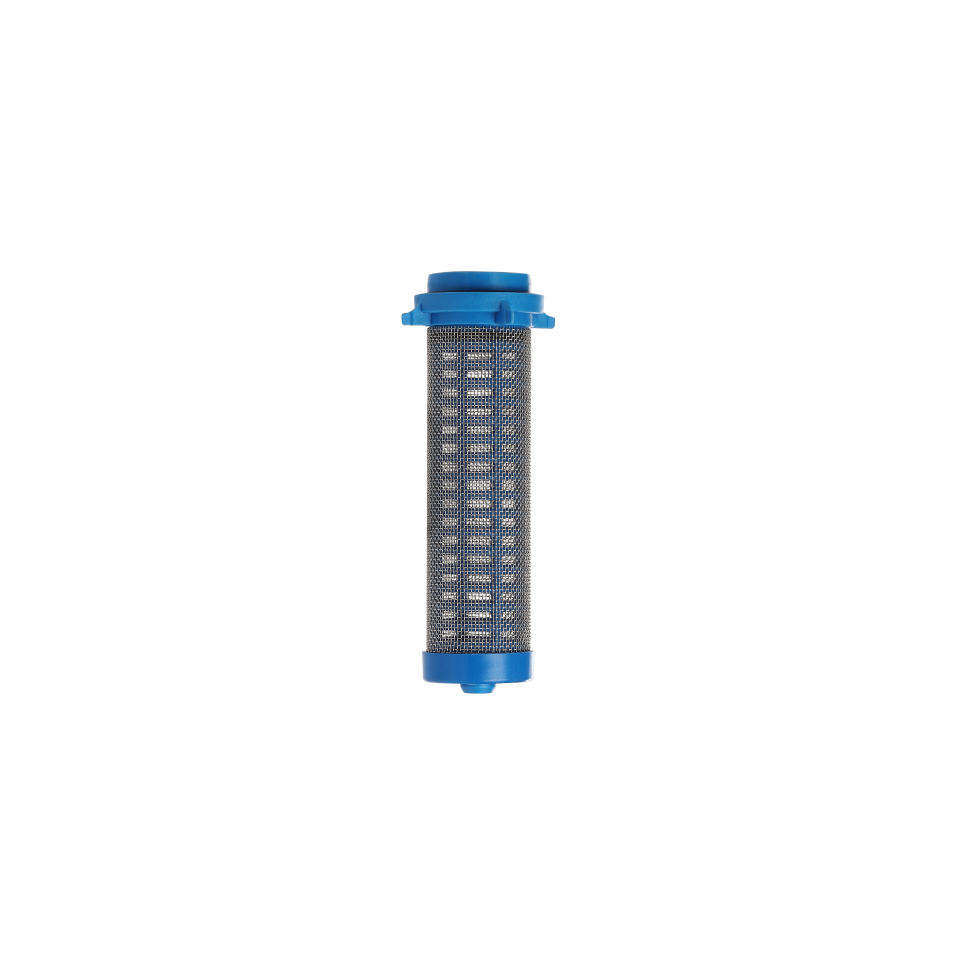

- Cartridge: SS** AISI 304
- Cartridge Type: Washable
- Maintenance: Quarterly
- Duration: 24 months

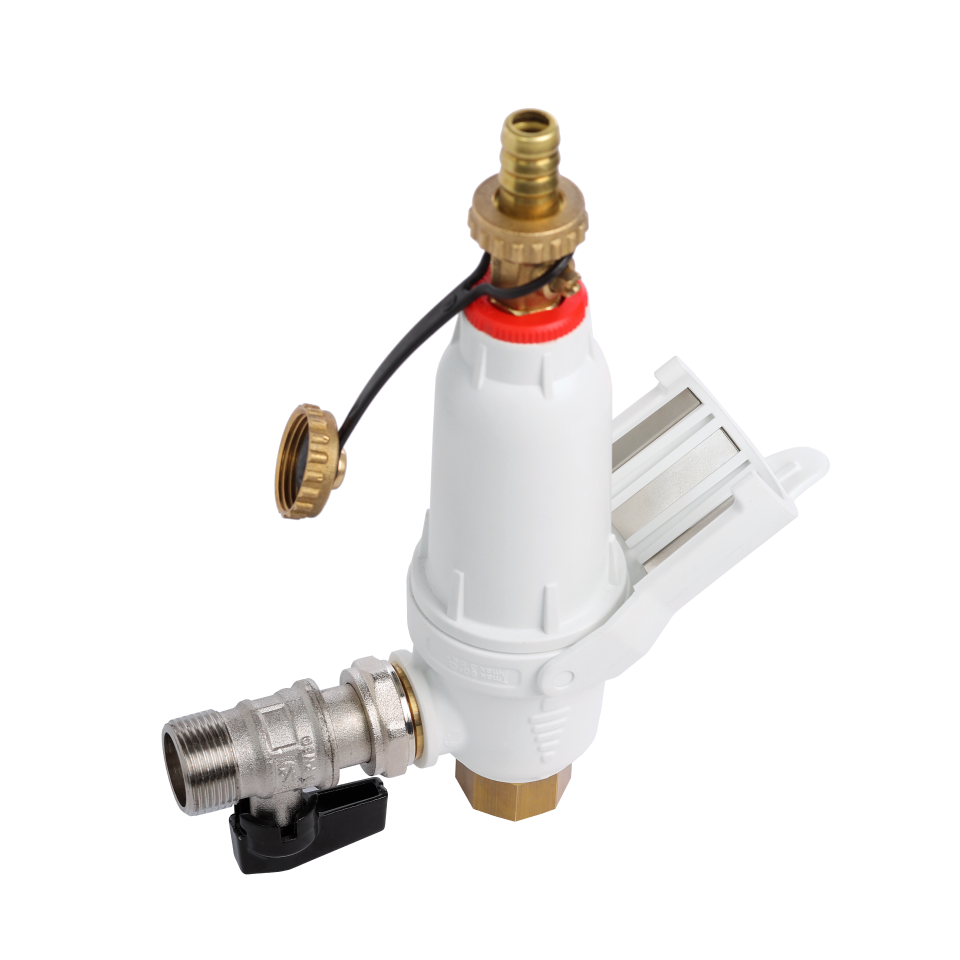

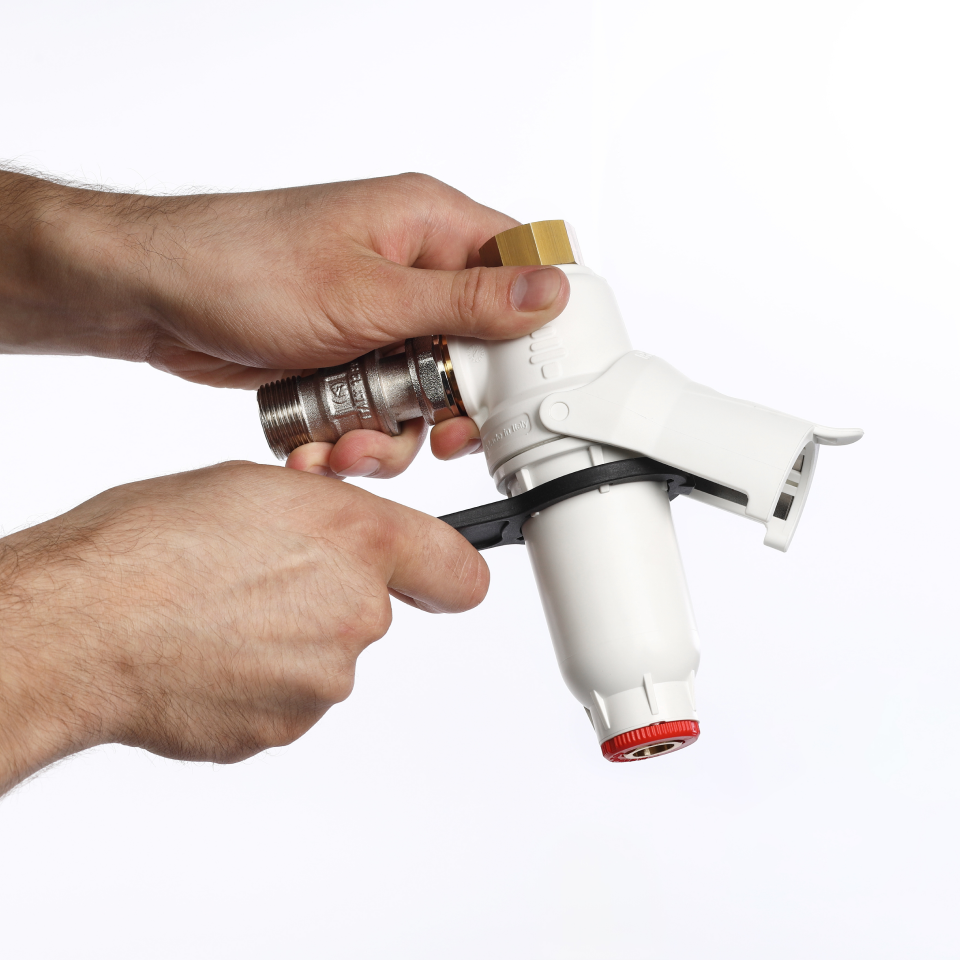

- Package Includes: Filter, cartridge, service wrench, two ball valves
- IN/OUT Threads: ¾” MF 90°
- Filtration Rating: 800 µm
- Flow Rate: 2 000 l/h
*Nylon
** Stainless steel
DIMA PRO MAGNETIC SLUDGE FILTERS IN OTHER SIZES
- FFNN2P5506 - DIMA PRO PA Filter with Brass Insert ¾" – 600 Micron:
- IN/OUT Threads: ¾” MF 90°
- Filtration Rating: 600 µm
- Flow Rate: 1 800 l/h
- FFNN2P5507 - DIMA PRO PA Filter with Brass Insert ¾" – 1000 Micron:
- IN/OUT Threads: ¾” MF 90°
- Filtration Rating: 1 000 µm
- Flow Rate: 2 500 l/h
Product
Image Size
DIMENSIONS, H×W×D:
224 x 65 x 41
mm
Filter weight
1
kg
TDS DIMA PRO
