ET-24
ET-24 Ecosoft UV water sterilizer
£ 1,65300

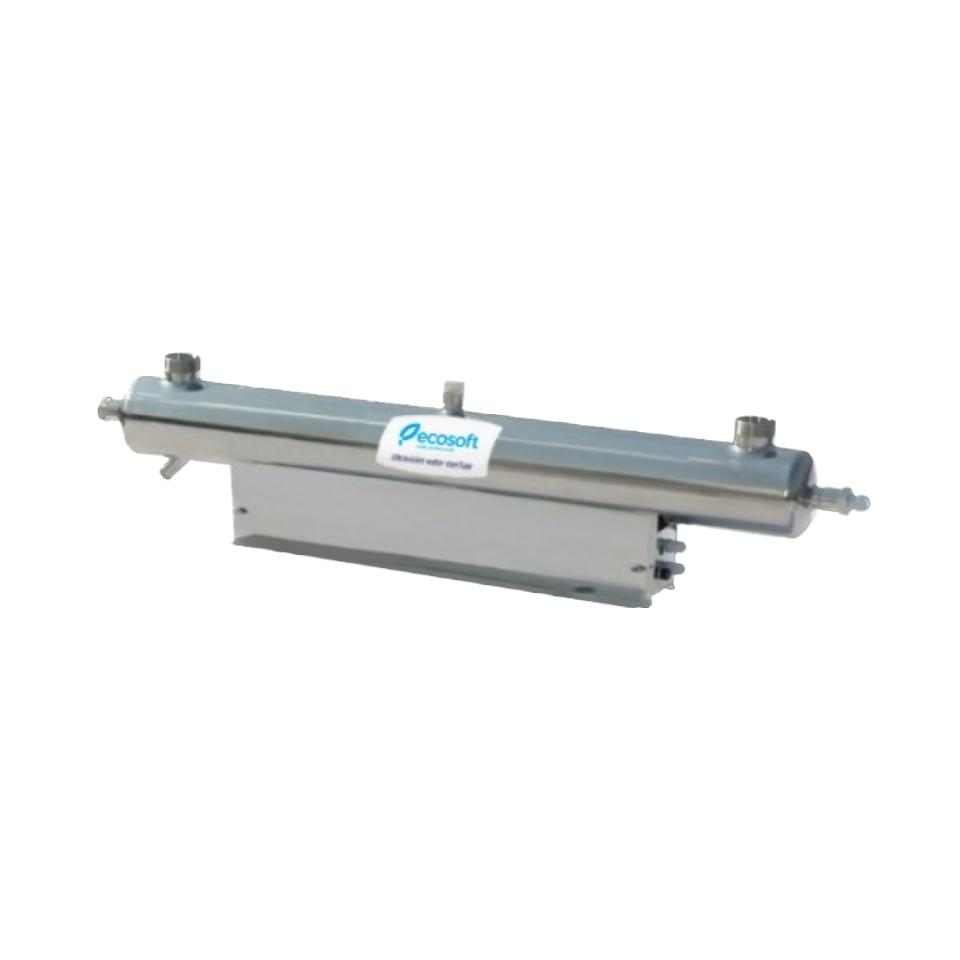

Ecosoft ET-24 ultraviolet water sterilizer is housed in a metal casing with an ultraviolet lamp inside a special quartz sleeve. It is designed for the disinfection of drinking water and household appliances in homes, hotels, cafes, restaurants, and water bottling stations. The sterilizer can also be used as an integral stage in drinking water treatment plants, as well as in various industrial processes.
Technical data sheet UV water sterilizers
Max flow rate
5.42
m³/h
Type and number of emitters
1 х T585
Max inlet pressure
8
bar
Electrical power of one emitter
85
W
Dimensions (L x D x H)
940 × 130 × 290
mm
Weight
10.7
kg
Operation
Water passes through the ultraviolet disinfectant, where the disinfection process takes place. The quartz cover is a necessary measure to prevent water from entering the case of the emitter.
UV disinfection unit maintenance
- Replace the lamp once a year.
- Clean components to remove mechanical impurities and plaque.
Technical data
- Maximum flow of disinfected water: 5.42 m³/h
- Type and number of emitters: 1 х T585
- Maximum inlet pressure: 8 bar
- Power supply: 230 V, 50 Hz
- Power consumption of one emitter: 85 W
- Diameter of piping: 1½" thread
- Lamp failure control device: visual
- Overall dimensions of assembled unit (L x W x H): 940×130×290 mm
- Approximate weight: 10.7 kg
Feed water requirements
- Temperature of the treated water: +4...+30 °С
- Turbidity: 0.58 mg/L
- Total hardness: 125 ppm
- Iron: 0.3 ppm
- Manganese: 0.05 ppm
- Hydrogen sulfide: 0.05 ppm
Set of UV disinfection system
- Stainless steel housing assembly
- Quartz sleeve
- UV emitter
- Power supply (electronic ballast)
