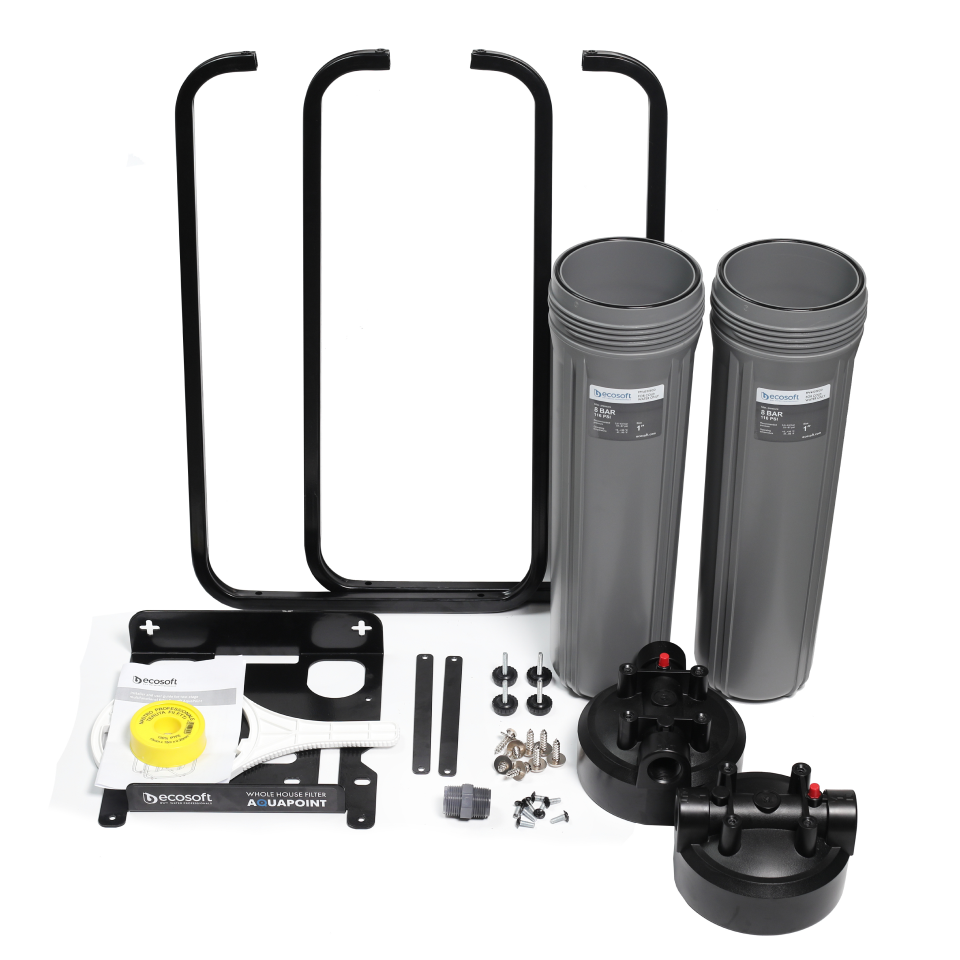

Components

1. Filter framework — 1 pcs
2. Big Blue 20 filters — 2 pcs
3. Assembled connection kit — 1 set
4. User manual

Six optional solutions

1. Two Ecosoft melt blown polypropylene filters 4,5”x20” 20 and 5 micron for turbid water with high content of sediments.
2. Ecosoft melt blown polypropylene filter 4,5”x20” 20 micron and granular activated carbon filter 4,5”х20” for tap water with high content of chlorine.
3. Ecosoft granular activated carbon filter 4,5”х20” and activated carbon block filter 4,5”х20” for water with color and chlorine.
4. Ecosoft melt blown polypropylene filter 4,5”x20” 20 micron and hydrogen sulfide reduction filter 4,5”х20” for water with hydrogen sulphide odor.
5. Ecosoft melt blown polypropylene filter 4,5”x20” 20 micron and iron reduction filter 4,5”х20” for water with high iron content.
6. Ecosoft iron reduction filter Ecosoft 4,5”х20” and granular activated carbon filter 4,5”х20” for water with high iron and hydrogen sulphide content.

Technical specifications

• Flow capacity* — 1.8 m³/h
• Temperature of water — +3…+43 °C
• Recommended pressure — 3.5…6 bar
• Maximum pressure — 8 bar
• Connections — 1”

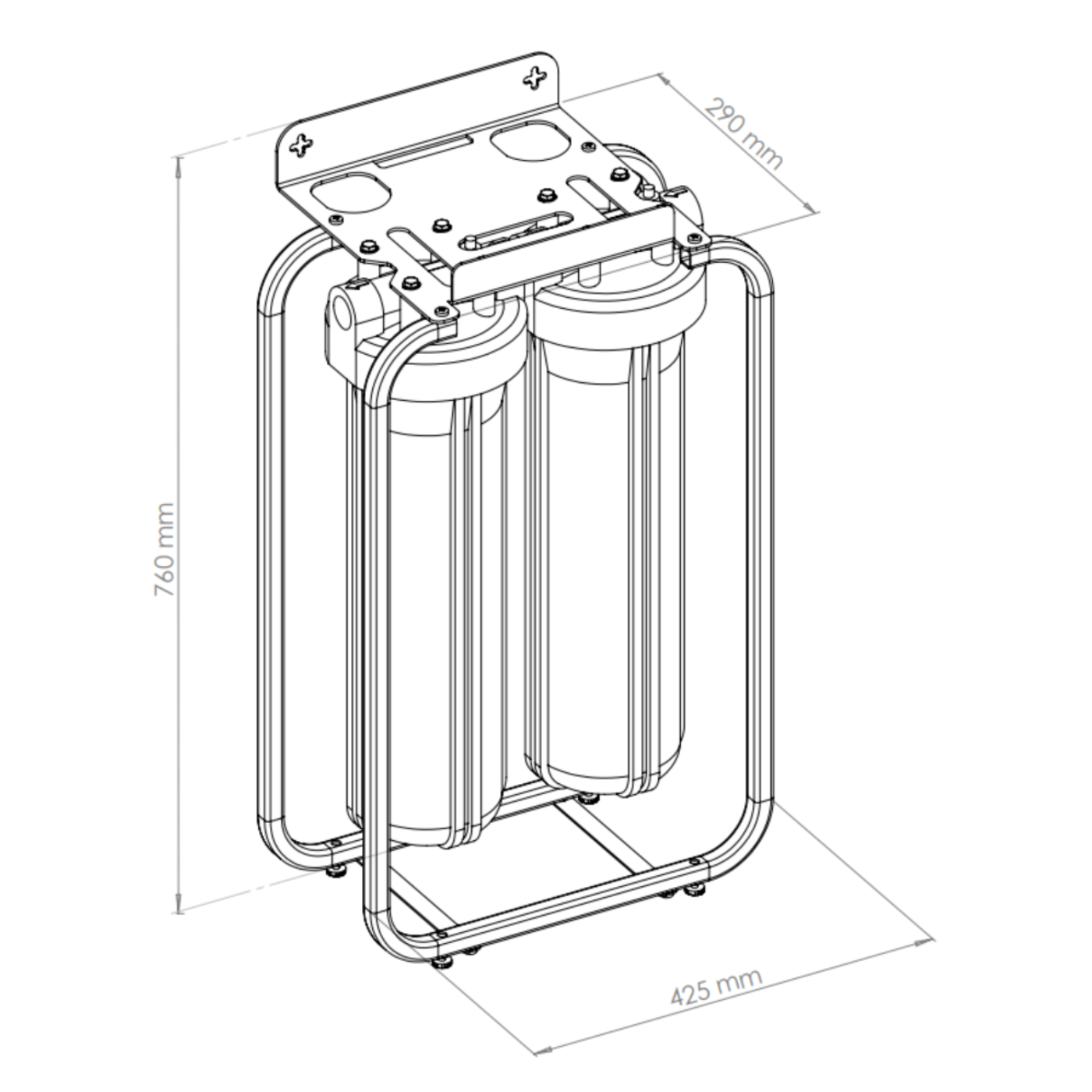

• Filter size (Diameter × Height) — 4.5 × 20″

*The flow capacity is for polypropylene filters. Flow capacity may be different with other types of filters.
