EXLP8040

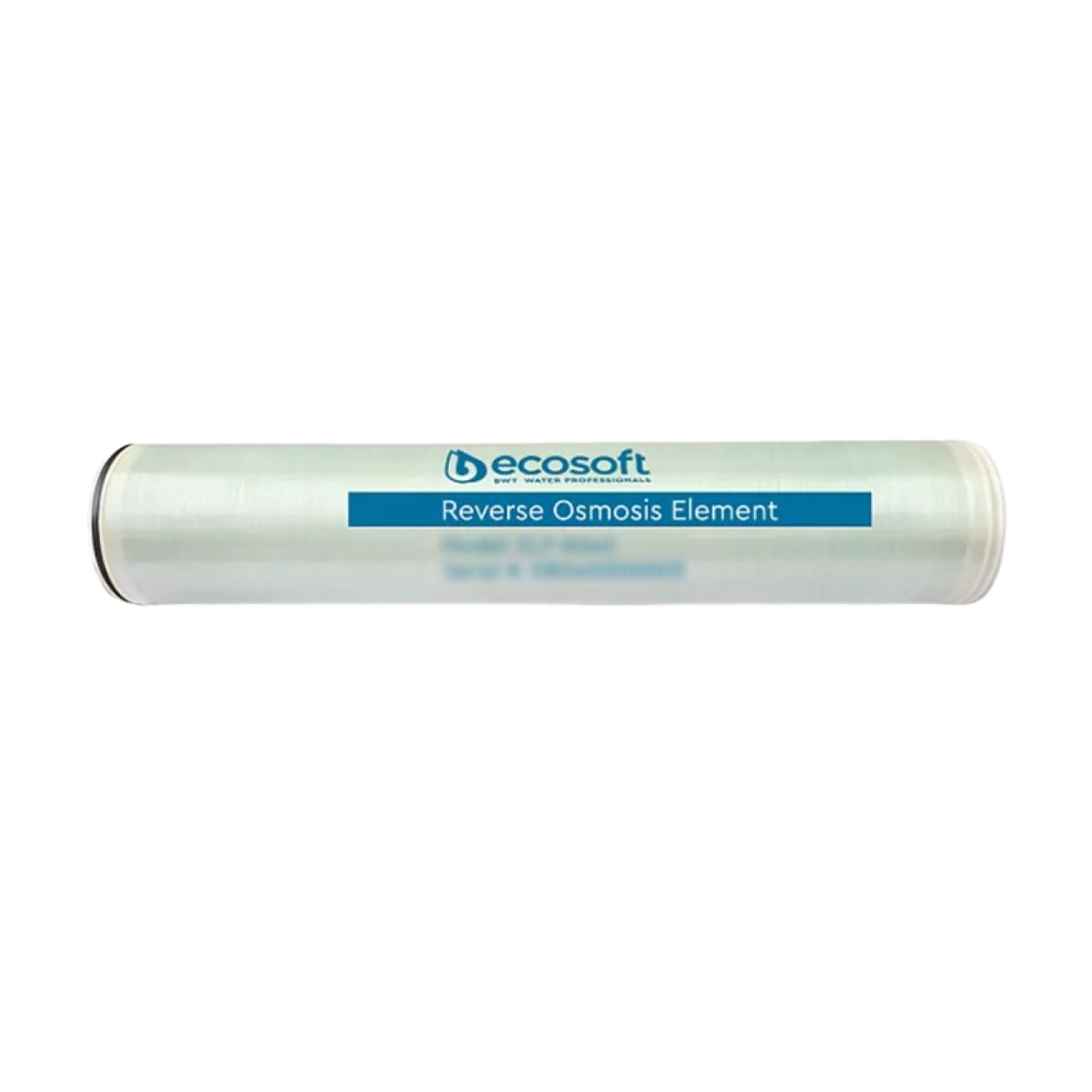

Ecosoft EXLP-8040 8" membrane
£ 96200
Membrane elements EXLP 8040 are intended for purification of brackish water in low pressure systems.
Large active surface area together with high rejection rates allows to use these membranes in variable pressure and flow conditions without deterioration of permeate quality.
Ecosoft 8ʺ EXLP-8040 membrane element specifications
Permeate Flow Rate
48.4
m³/day
Active Membrane Area
37.2
m²
Stabilized Salt Rejection
99.2
%
Operating pressure
6.9
bar
Specifications
Membrane type: spiral-wound element with polyamide thin-film composite
- Active area: 37.2 m²
- Operating pressure: 6.9 bar
- Flow rate: 48.4 m³/day
- Stabilized salt rejection: 99.2 %
* Permeate flow and salt (NaCl) rejection based on the following standard test conditions: 500 mg/L NaCl, 25 °C, permeate recovery asspecified below. Permeate flow rate for one element does not exceed ±20% of the nominal value.
Operating parameters
- Maximum operating water temperature: 45 °C
- Maximum operating pressure: 41 bar
- Maximum element pressure drop: 1.0 bar
- pH range, continuous operation: 3...10
- pH range, short-term cleaning: 2...12
- Maximum Feed Silt Density Index (SDI): 5
- Free chlorine tolerance: < 0.1 mg/L
Product
Image Size

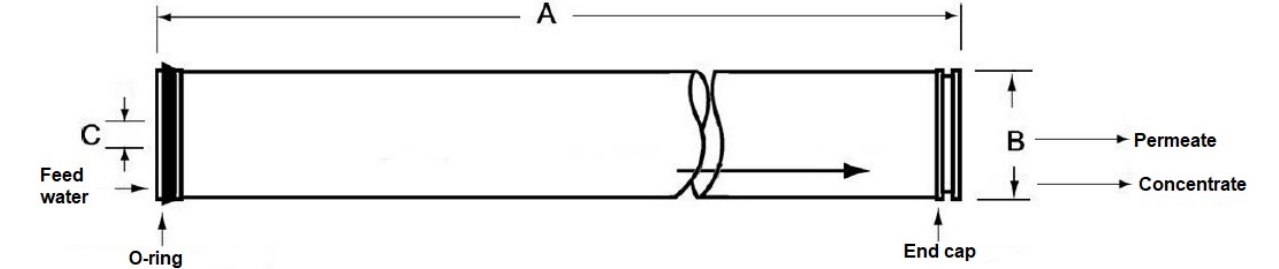

DIMENSIONS, H×W×D:
1016 (A) x 201 (B) x 29 (C)
mm
Filter weight
18
kg
