FCXRL00500

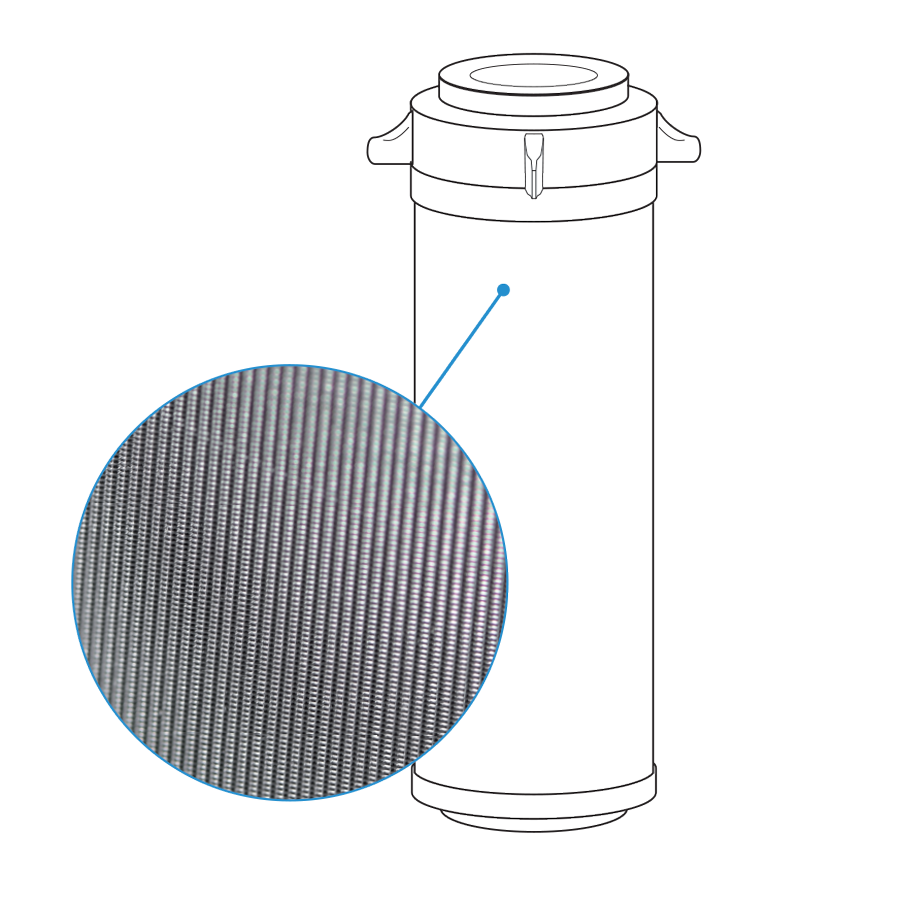

CXRL – 304 stainless steel mesh cartridge
The CXRL 304 stainless steel mesh washable cartridge is engineered for the protection of boilers, effectively filtering sand, scale, rust, and hot water in hydroelectric applications. Its versatile industrial uses extend to safeguarding water pumps, boilers, irrigation systems, cooling systems, car wash services, and the food industry. The cartridge’s longevity is enhanced through regeneration, achieved via mechanical or counter-current chemical washing, ensuring prolonged, efficient reuse.
TDS CXRL – 304 stainless steel mesh cartridge
Technical specifications
- Model: CXRL
- Filtration: Sediments
- Filtering Medium: Stainless steel AISI 304
- Internal Support: Nylon
- External Armouring: Stainless steel
- Valves: Polypropylene
- O-ring: NBR 70
- Working Temperature: From 4°C (39°F) to 90°C (194°F)
- Cartridge Type: Washable
- Maintenance: Quarterly
- Duration: 24 months
- Flow Rate: 1 800 l/h
- Filtration Rating: 600 µm
- Colour of Cartridge Cup: Blue
CXRL 304 STAINLESS STEEL MESH CARTRIDGES IN OTHER SIZES
- FCXRL00520:
- Flow Rate: 2 000 l/h
- Filtration Rating: 800 µm
- Colour of Cartridge Cup: Gray

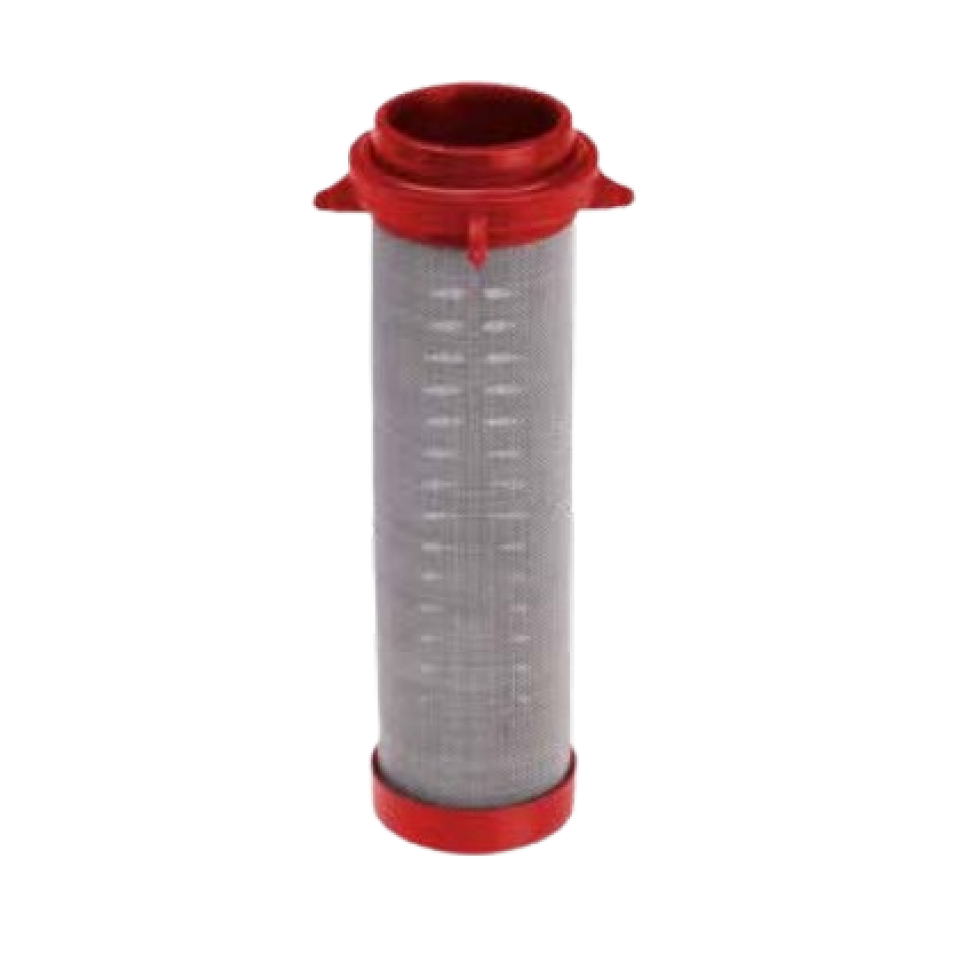

- FCXRL00540:
- Flow Rate: 2 500 l/h
- Filtration Rating: 1 000 µm
- Colour of Cartridge Cup: Red
Product
Image Size
DIMENSIONS, H×W×D:
101 x 27 x 20
mm
Filter weight
kg
