FFPP2PTM00

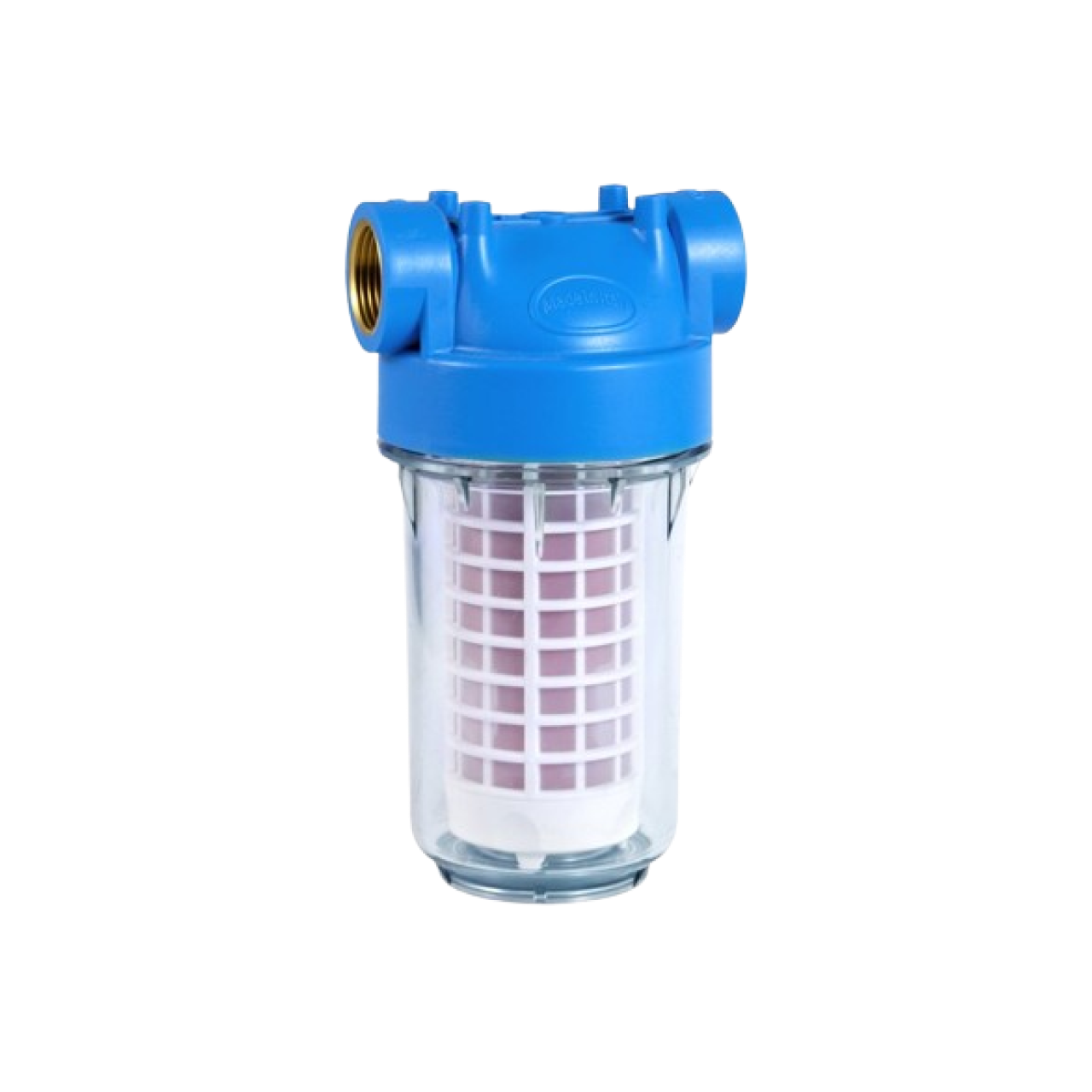

COMPAQ 2P 5” MINI 3V filter with cartridge with magnet, ½” F
COMPAQ 2P 5” mini filter is designed for water purification in heating systems as well as other domestic and industrial applications. The bowl is made of PET material, ensuring reliability and durability. The filter is equipped with a magnet inside a polyamide net sediment washable cartridge, providing enhanced dual protection.
TDS COMPAQ 2P 5” MINI

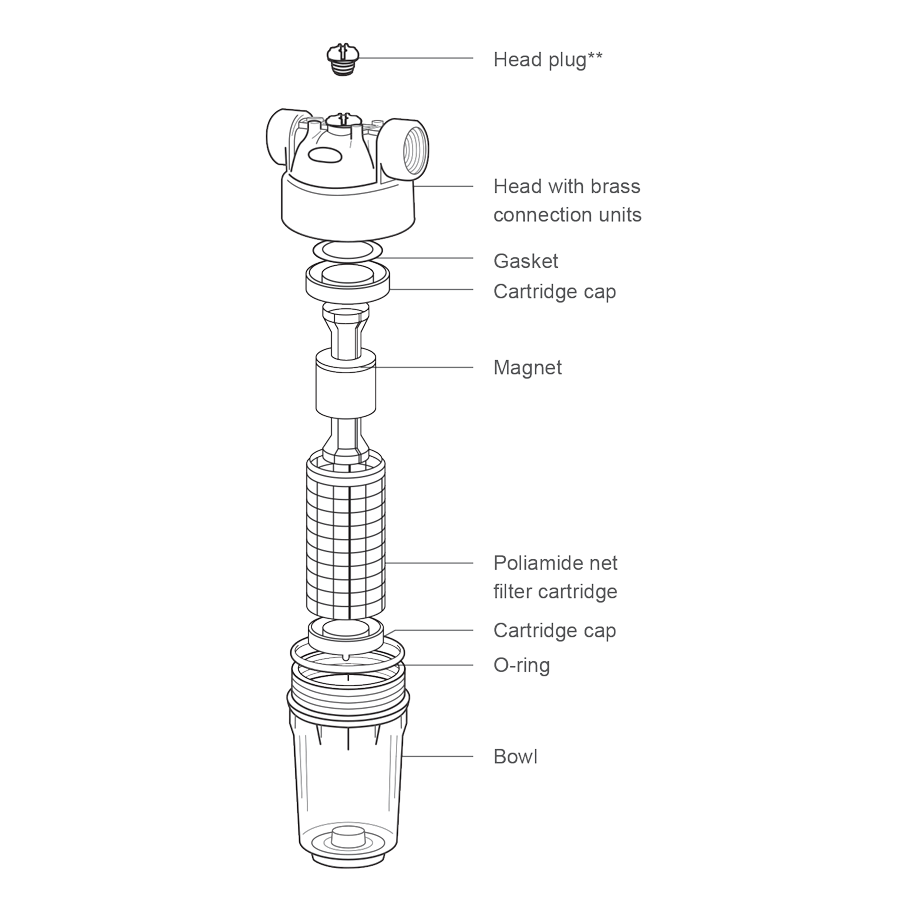

Technical specifications
- Head: PP with brass connection units
- Nut: Threaded
- Bowl: PET* (Polyethylene Terephthalate)
- O-ring: EPDM
- Max. working pressure: 8 bar
- Working temperature: from 5°C (41°F) to 50°C (122°F)
- Bracketing: Horizontal
- Filtration rating: 60 µm
- Filtration: Sediments and limescale protection
- Filter media: Polyamide + Magnet
- Maintenance: Quarterly
- Duration: Maximum 24 months
- Cartridge type: Washable
- Size: 5” MINI
- IN/OUT threads: ½" F 3V
*Polyethylene terephthalate
COMPAQ 2P 5” MINI FILTERS WITH CARTRIDGE & MAGNET IN OTHER SIZES
- FFPP2PTM05 - COMPAQ 2P 5” MINI 2V Filter with Magnet Cartridge, ½” F:
- IN/OUT threads: ½" F 2V
- Size: 5” MINI
- FFPP2PTM10 - COMPAQ 2P 5” MINI 2V Filter with Magnet Cartridge, ¾” F:
- IN/OUT threads: ¾" F 2V
- Size: 5” MINI
